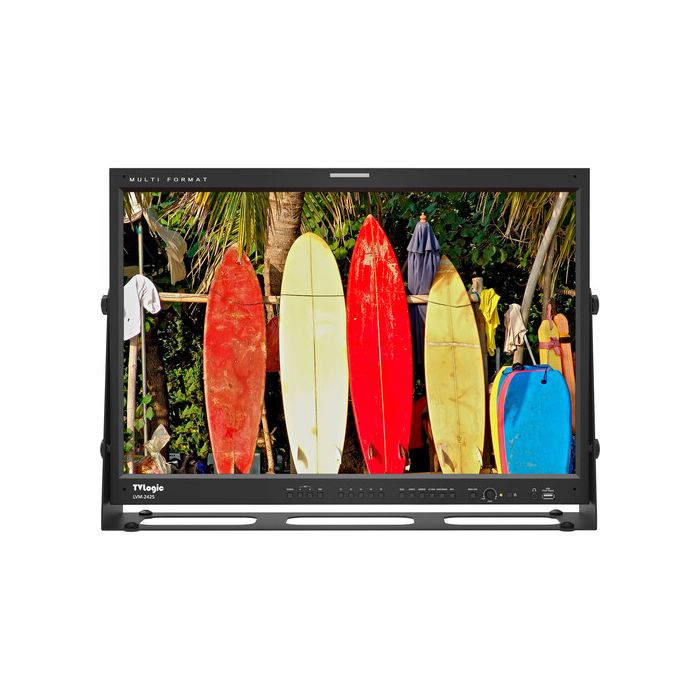

TVLogic LVM-242S 24'' 1920x1200 (true 10bit) QC-Grade Super-IPS LCD Monitor

TVLogic LVM-242S 24'' 1920x1200 (true 10bit) QC-Grade Super-IPS LCD Monitor

by TVLogic

Dostupnost Beograd: Isporuka 20-30 dana

SKU

TVL-LVM-242S

24" 1920 x 1200 LCD Monitor
2 x SDI, 1 x HDMI Inputs

706.879,00 RSD 589.065,83 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

TVLogic 24" Full HD SDI/HDMI/Analog LCD Monitor
Camera Mount
Acrylic Filter
Rackmount Kit
Sun Hood
Handle
Table Stand
DC Power Adapter
AC Power Cord
HDMI Bracket
Carrying Case

Detalji

This 24" Full HD SDI/HDMI/Analog LCD Monitor from TVLogic is designed for field monitoring applications thanks to its various input connections and full HD 24" display. Various input connectors, two SDI, one HDMI, three BNC, and one DVI-I, support up to 1080p full HD video. The LVM-242S has a maximum brightness of 400 cd/m² and monitor resolution of 1920 x 1200 for improved visibility.

Onboard button controls allow you to adjust various image monitoring parameters from waveform to closed captioning. Control can also be achieved via the RS-422 connections or via remote control. You even have the option to upload custom 3D LUTs and get a better idea of your final color grade.

Features at a Glance

Accurate color reproduction with wide color gamut ensures accurate color reproduction
Advanced color adjustment menus
EMBER+ protocol for easy control and interactive setting
Supports HDR-EOTFs of PQ, HLG, and S-Log3 for HDR content
Electrical-Electrical Transfer Function to roll off highlights and shadows to balance the image
Upload custom 3D LUT files
Picture-by-Picture functions
Fast mode minimizes de-interlacing time delay and improves quality of fast/fine details

Other Video Assist Functions

Timecode display
Waveform
Vectorscope
Marker
Focus assist
Luma(Y') zone check
Closed caption
16-channel audio level meter
Dynamic UMD display
Range error
Blue/mono only
Various scan modes

Više informacija

Display Size	24.00" / 61.0 cm
Native Resolution	1920 x 1200
Touchscreen	No
HDR Support	Yes
Video I/O	2x BNC (3G-SDI) Input
	1x HDMI Input
	2x BNC (3G-SDI) Loop Output
	1x 3BNC (Component) Input
	1x 3BNC (Component) Output
	1x DVI-I Input
	Show Less
Media/Memory Card Slot	No
Video Format	DVI
	1080i: 60
	720p: 60
	480p: 60/50
	SDI
	DCI 2K: 24/23.98
	DCI 2K PsF: 24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 30/29.97/25/24/23.98
	576i: 50
	480i: 59.94
	HDMI
	1080p: 60
	1080i: 60
	720p: 60
	576p: 50
	576i: 50
	480p: 60
	480i: 60
	Show Less
Battery	No
Display
Panel Type	IPS-Type LCD
Display Size	24.00" / 61.0 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	400 nits / cd/m2
Contrast Ratio	1800:01:00
Color Support	1.07 Billion Colors (10-Bit)
HDR Support	Yes
LUT Support	Yes
Image Controls	Blue Only, Focus Assist, Focus Peaking, H/V Delay, Overrange Detection, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Inputs/Outputs
Video I/O	2x BNC (3G-SDI) Input
	1x HDMI Input
	2x BNC (3G-SDI) Loop Output
	1x 3BNC (Component) Input
	1x 3BNC (Component) Output
	1x DVI-I Input
Audio I/O	1x 1/8" / 3.5 mm Input
	1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	No
Other I/O	1x RJ45 (GPI)
	1x RJ45 (LAN)
	2x RJ45 (RS-422) Input/Output
	1x USB-A 2.0
Media/Memory Card Slot	No
Wireless
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	DVI
	1080i: 60
	720p: 60
	480p: 60/50
	SDI
	DCI 2K: 24/23.98
	DCI 2K PsF: 24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 30/29.97/25/24/23.98
	576i: 50
	480i: 59.94
	HDMI
	1080p: 60
	1080i: 60
	720p: 60
	576p: 50
	576i: 50
	480p: 60
	480i: 60
Gamma Curve	HDR-HLG, HDR-PQ, Sony S-Log 3
Power
Input Power	12 to 24 VDC
	100 to 240 VAC, 50 / 60 Hz
Battery	No
General
Dimensions	21.8 x 15.3 x 3.9" / 552.5 x 389 x 98.5 mm
	23.1 x 16.4 x 5.9" / 586 x 416.8 x 150 mm (Including Stand)
Weight	23.55 lb / 10.68 kg
