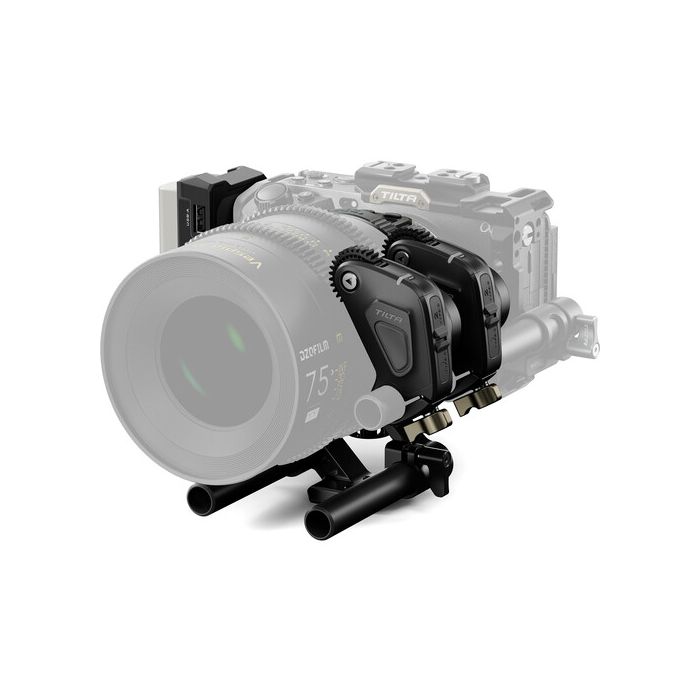

Tilta Nucleus Auto Focus Adapter Dual Nano II Motor Kit (E to PL)

Tilta Nucleus Autofocus Adapter Base Kit (Sony E to ARRI PL)

This kit includes a Sony E to ARRI PL-mount lens autofocus adapter, a 15mm rod adapter, two 15mm rods, a USB-C to 7-pin LEMO-type power cable, and a USB-C dual-motor Y-cable.

Native Sony Camera Autofocus Data

Utilize Sony's real-time face tracking and eye autofocus when using a PL-mount cine lens.

Seamless Manual/Autofocus Switching

The adapter makes it easy to switch between manual and autofocus modes using the Nucleus ecosystem, which allows you to quickly take control of precise focus pulls or racks when needed.

Lens Data

The adapter features a built-in lens library, so you can choose the proper lens type for sharing lens data. The lens data can be shared with your device using the built-in storage on the adapter, and it can also be accessed using a Nucleus II or Nano II handwheel.

The lens can also be manually calibrated, and that calibration can be saved to the internal lens library.

Dual Motor Support

The lens adapter can be used with a wireless motor, and it can also be set up with dual motors using the included cable to also adjust the camera's iris control.

Tilta Nucleus Nano II FIZ Lens Control Motor Kit

With increased torque and both USB-C and Wi-Fi connectivity, the Nucleus Nano II FIZ Lens Control Motor Kit from Tilta includes an upgraded motor designed to power the zoom, focus, or iris functions of your FIZ system. The motor drive is positioned in an offset orientation from the main gearing to prevent the motor from pushing away from the lens during use. A 0.8 MOD gear ensures compatibility with most cinema-standard lenses.

Two USB-C ports on the motor—one I/O and one input only—power the motor and can pass power through to multiple motors to control FIZ from a single source. Built-in 2.4 GHz Wi-Fi connectivity can pair the device with the separately available Handwheel Controller or Control Handle. Pair the device using the onboard pairing button and use the LED indicator to set its function. An integrated 15mm single rog clamp attaches the motor to your rig. Expand compatibility to other DSLR and mirrorless lens models with the included lens adapter ring.

LED Indicator

• Green: Iris control
• Blue: Zoom control
• Purple: Focus control
• Yellow: Unassigned

Tilta L-Series Battery Plate (Black)

Power your camera and accessories mounted on a full or half cage with this Tilta gray L-Series Battery Plate from Tilta. The plate mounts one Sony NP-F970 L-series battery and features DC barrel and USB outputs to power your camera and additional accessories. It is constructed with durable aluminum with stainless steel components.

The battery plate features one 8 VDC 2.1mm barrel output and one 12 VDC 2.5mm barrel output on either side. It also features a 5 VDC USB-A port on one side to power small accessories like a smartphone, and on the other side a USB-C port allows you to charge the battery via its 18W PD input or it provides charging output. The plate also features a 1/4"-20 screw with anti-twist pins for mounting onto the cage, and soft padding prevents slipping and scratching when mounted.

Compatibility
Tilta full or half cages with a 1/4"-20 thread
One Sony NP-F970 L-series battery
