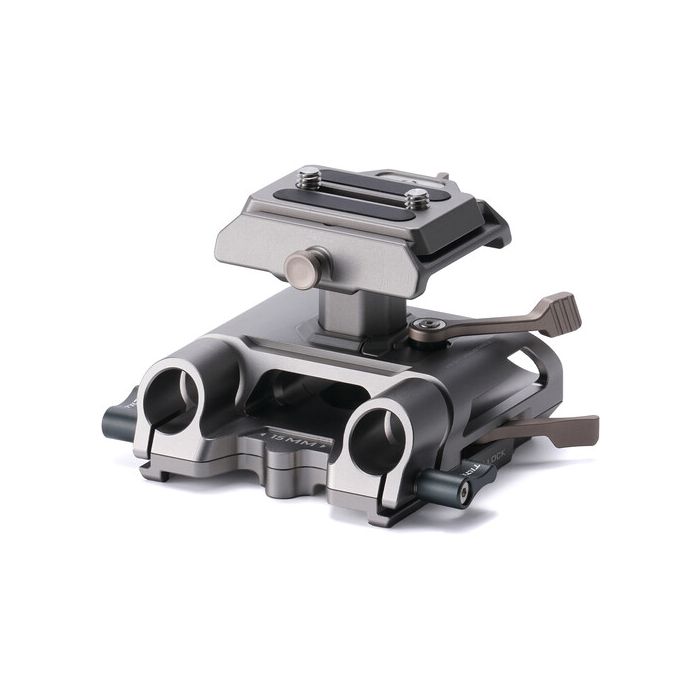

Tilta Arca Height Adjustable 15mm LWS Baseplate - Titanium Gray
by TiltaThe system is height adjustable within a 0.78" range to accommodate a follow focus system or matte box, and it features a range of 0.71 to 1.5" from the rod center to the Arca receiver.
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Tilta Height-Adjustable Arca-Type 15mm LWS Baseplate (Titanium Gray)
- Arca-Type Quick Release Plate (Titanium Gray)
- 1/4"-20 Screw
- Allen Wrench
Tilta Arca Adjustable 15mm LWS Baseplate
This Height-Adjustable Arca-Type 15mm LWS Baseplate from Tilta features a 15mm LWS rod clamp baseplate to accommodate standard 15mm rods, and a quick release top plate is included for integration with Arca-type tripod systems.
A dovetail clamp on the base is compatible with Tilta dovetail plates, and there are also 1/4"-20 threads on the bottom for mounting onto a tripod, plate, or rig. The Arca-type quick release plate features a 1/4"-20 screw to secure your camera. The baseplate can support a camera rig load weighing up to 10 lb.
| Support Type | Baseplate |
| Grip Type | No |
| Camera Compatibility | Universal |
| Mounting | |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Battery Plate Type | No |
| Accessory Mounting | No |
| Camera Mounting | Arca-Type Plate with 1/4"-20 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, Built-In Proprietary Dovetail Plate |
| Rod Ports | 2x 15 mm Rod Port |
| Shoe Mounting | No |
| Rosettes | No |
| General | |
| Load Capacity | 10 lb / 4.5 kg |
| Load Capacity | 10 lb / 4.5 kg |
| Materials | Aluminum Alloy |
| Dimensions | 7.5 x 5.5 x 3.5" / 190.5 x 139.7 x 88.9 mm |
| Weight | 1 lb / 0.5 kg |
