Teradek RT MOTR.S

by Teradek

Rok isporuke: 20-30 dana

SKU

TRD-15-0050

Compact Lens-Control Motor
Includes 0.8 MOD Lens Gear

275.419,00 RSD 229.515,83 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

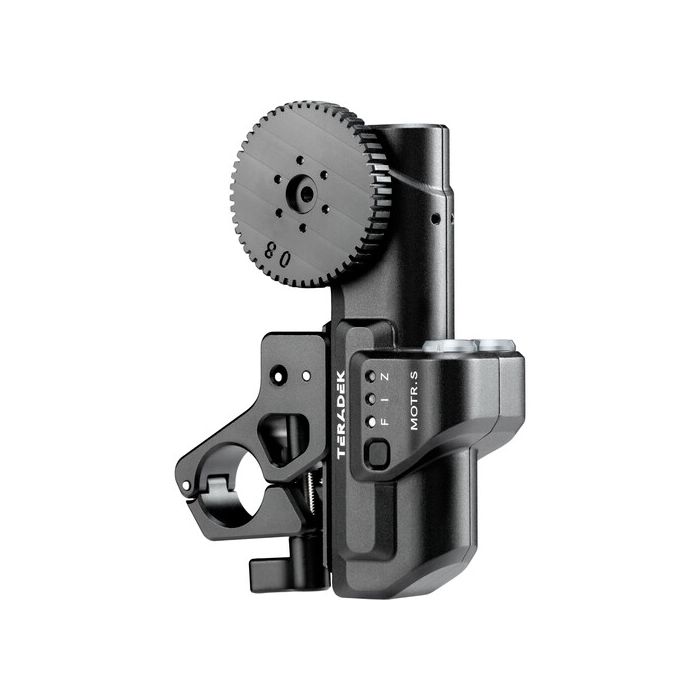

Teradek RT MOTR.S Lens Motor
0.8 MOD Gear
MOTR.S Bracket

Detalji

esigned to improve upon previous models, the Teradek RT MOTR.S Lens Motor is an ultra-compact, lightweight, and speedy lens control unit capable of adjusting focus, iris, or zoom functions. The motor has a maximum torque of 0.95nm and a maximum speed of 297 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.

An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage up to 32V.

MOTR.S Upgrades

More compact and lightweight form factor
Redesigned aluminum chassis, reinforced sockets, next gen circuit boards
New 15/19mm rod clamp with better located handle
0.95nm maximum torque, 297 teeth per second

Više informacija

General
Gear Pitch	0.8 MOD
Maximum Torque	0.95 nm (Peak)
	0.3 nm (continuous)
Maximum Speed	297 teeth per second
Connectors	2 x 0B 4-Pin
Power
Power Source	Plug-In Power
DC Input Power	7 to 32 VDC
Operating Current	1 A (Standby)
	2 A (Maximum)
Environmental
Operating Temperature	32 to 82°F / 0 to 50°C
Physical
Mounting	1x 15mm Rod Clamp
	1x 19mm Rod Clamp
Color	Black
Material of Construction	Aluminum
Dimensions	4.2 x 2.2 x 1.2" / 106 x 56 x 31 mm
Weight	6.5 oz / 184 g
