SKAARHOJ ATEM GPI & Tally Interface Breakout Board
by Skaarhoj
Rok isporuke:
20-30 dana
SKU
ATEM-GPITally-BO-Board
- For Use with ATEM GPI & Tally Interface
- 8 x GPI Phoenix Inputs
- 8 x GPO Phoenix Outputs
- DC Plug for External Power
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- SKAARHOJ ATEM GPI and Tally Interface Breakout Board

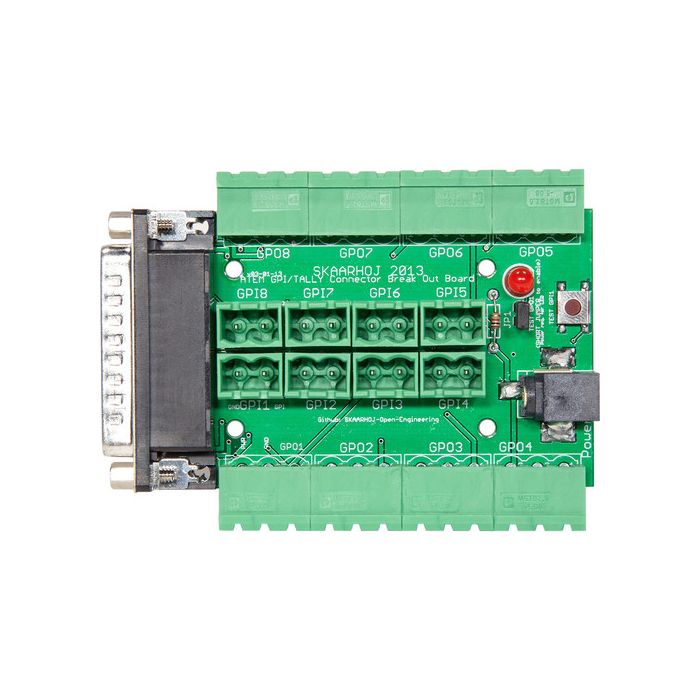

The ATEM GPI and Tally Interface Breakout Board from SKAARHOJ connects through the 25-pin D-Sub connector port to ATEM GPI and tally interfaces, ETH-GPI Link series, and Blackmagic Design GPI/tally boxes. The ATEM GPI and tally interface provides an easy interface for individual tally lamp control to your ATEM. It features eight sturdy onboard GPI Phoenix input connectors and eight GPO Phoenix output connectors, plus a DC plug for external power. The board features a confirmation LED which lights up when tally is on input 1, and a push button which lets you test the GPI of input 1.
| SKAARHOJ ATEM-GPITALLY-BO-BOARD Specs | |
|
Compatibility
|
ATEM GPI and Tally Interface |
| ETH-GPI Link Series | |
| Blackmagic Design GPI/Tally Boxes | |
| Connectors | 1 x 25-Pin D-Sub Male, I/O Interface |
| 8 x 2-Pin Male Phoenix, GPI Input | |
| 8 x 3-Pin Male Phoenix, GPO Output | |
| 1 x 5.5 mm DC Barrel, Power Input | |
| Indicators | 1 x LED, Tally GPO Output 1 |
| Control | 1 x Button, Test GPI Input 1 |
|
Packaging Info
|
|
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 7.7 x 4.7 x 2.4" |
