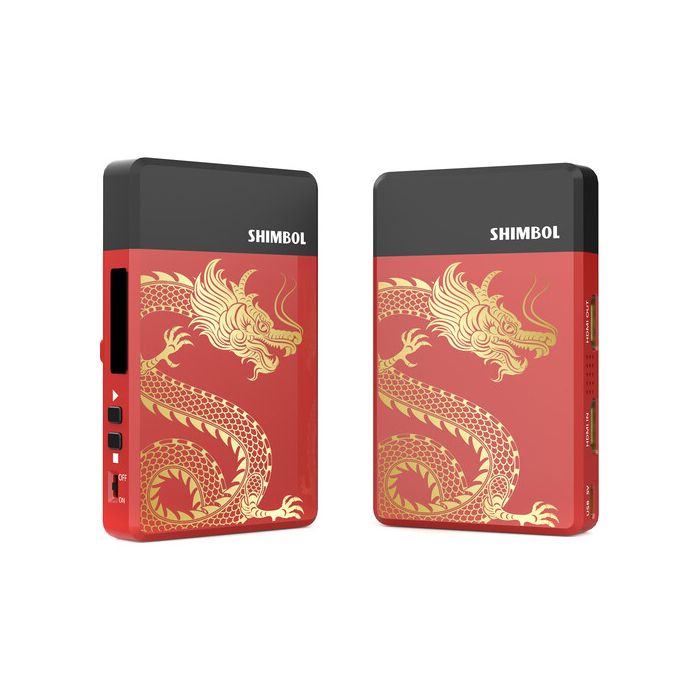

Shimbol TP Mini 600' HDMI Wireless Video Transmission System
by ShimbolTransmitter and Receiver Set
Transmit up to 1080p60 Video
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Shimbol TP Mini 600' HDMI Wireless Video Transmission System
- Transmitter
- Receiver
- USB-C Power Cable
- 2 x Sticker
Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight TP Mini 600' HDMI Wireless Video Transmission System from Shimbol. The transmitter provides HDMI input and features a line-of-sight transmission up to 600' to the receiver using the free 5 GHz wireless band with low 70ms latency, and it features an HDMI loop-through output. The receiver features two HDMI outputs for viewing on a monitor or sending the feed to a switcher.
An OLED display on the side of each unit displays the status of the wireless signal. You can power each unit using an L-series battery, or you can utilize a separately available power source using the 5V USB-C input. The antennas are built into the units, so they are compact and easy to install and transport.
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Output
|
|
|
Receiver: 2x HDMI (Unspecified Signal) Output
|
|
| Embedded Audio | HDMI |
| Latency | 70 ms |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| Show Less | |
| Battery Type |
Transmitter/Receiver: 1x L-Series
|
| Power Consumption | Transmitter: 2.5 W |
| Receiver: 2 W | |
| Mounting |
Not Specified by Manufacturer
|
| Inputs/Outputs | |
| Video I/O |
Transmitter: 1x HDMI (Unspecified Signal) Input
|
|
Transmitter: 1x HDMI (Unspecified Signal) Output
|
|
|
Receiver: 2x HDMI (Unspecified Signal) Output
|
|
| Embedded Audio | HDMI |
| Audio I/O | No |
| Power I/O |
Transmitter/Receiver: 1x USB-C (5 VDC) Input
|
|
Transmitter/Receiver: 1x USB-C (5 VDC) Input
|
|
| Encryption | No, |
| Wireless | |
| Wireless Range |
600' / 182.9 m (Line-of-Sight)
|
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz |
| Latency | 70 ms |
| RF Power | < 17 dBm |
| RF Sensitivity | -85 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI |
| 1080p: 60/50/30/25/24 | |
| 1080i: 60/50 | |
| 720p: 60/50 | |
| Audio Format |
Not Specified by Manufacturer
|
| Timecode Support | No |
| Power | |
| Battery Type |
Transmitter/Receiver: 1x L-Series
|
| Power Consumption | Transmitter: 2.5 W |
| Receiver: 2 W | |
| Mounting | |
| Mounting |
Not Specified by Manufacturer
|
| General | |
| Environmental Resistance | No |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Material of Construction | Aluminum |
| Dimensions |
Transmitter/Receiver: 4.1 x 2.5 x 0.6" / 103 x 63.5 x 15 mm
|
| Weight |
Transmitter/Receiver: 4.23 oz / 120.00 g
|
| Packaging Info | |
| Package Weight | 0.815 lb |
| Box Dimensions (LxWxH) | 6 x 4.2 x 3.7" |
