Viltrox NexusFocus F1 PL-E Autofocus Control System Single Motor Package

Viltrox NexusFocus F1 PL-E Autofocus Control System Single Motor Package

by Viltrox

Dostupnost Beograd: Isporuka 20-30 dana

SKU

VL-NexusFocusF1-S

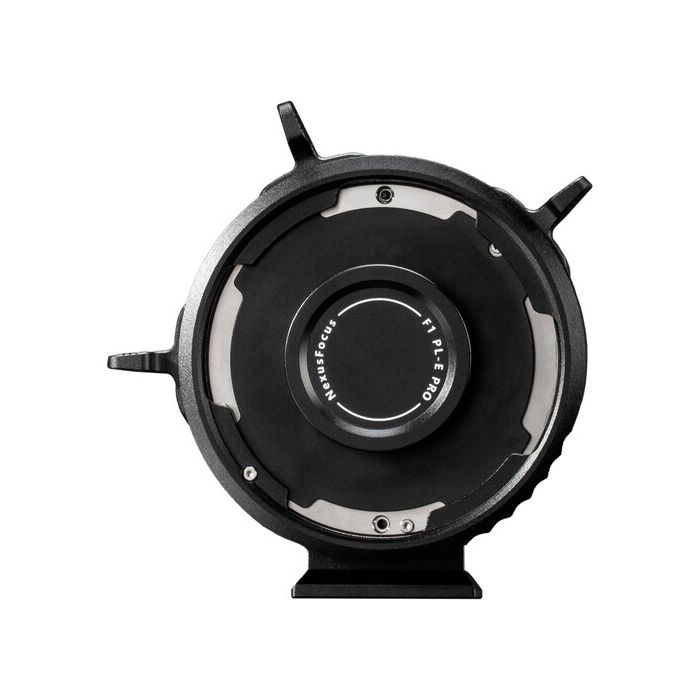

The NexusFocus F1 Sony E to ARRI PL-Mount Autofocus Control System with Single Motor from Viltrox includes a Sony E to ARRI PL-mount lens autofocus adapter, one lens motor, and a power box.

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

Viltrox NexusFocus F1 Sony E to ARRI PL-Mount Autofocus Control System with Single Motor
Focus Motor
F1-MT Lens Gear
Front Cap
Rear Cap
USB-C to D-Tap Power Cable
2 x USB-C to USB-C Power Cable
Installation Tool Kit
Focus Test Chart
Carry Case

Detalji

The NexusFocus F1 Sony E to ARRI PL-Mount Autofocus Control System with Single Motor from Viltrox includes a Sony E to ARRI PL-mount lens autofocus adapter, one lens motor, and a power box. This ARRI PL to Sony E adapter system is designed to bring camera-driven autofocus and electronic lens control to manual PL-mount cinema and CineMod lenses. Built for experienced filmmakers, solo operators, and small crews using compatible Sony E-mount cameras with AI processing, it leverages the camera's native phase-detection autofocus and subject recognition to drive external motors for focus, iris, and zoom control.

Practical Production Use

In narrative, commercial, and documentary workflows, the NexusFocus F1 enables autofocus operation with classic cinema lenses on modern Sony cameras. Solo operators can rely on camera-based subject tracking for interviews or gimbal work, while small crews gain repeatable, calibrated lens control without a dedicated focus puller. The system is equally suited to handheld, tripod-mounted, or stabilized setups where precise focus and aperture control are required with minimal setup time.

Mechanical Design and Power Management

The NexusFocus F1 is built from aluminum alloy and stainless steel for durability in production environments. Precision machining ensures accurate flange distance and reliable infinity focus.

Dust-resistant seal at the camera mount
Internal antireflection threading to reduce flare
Detachable tripod foot for balanced rig support
USB-C connectivity with support for regulated external power via the included Power Box when using variable or USB-C power sources

Integrated Display and Physical Controls

A backlit display on the adapter ring provides immediate access to operating mode and lens data, while tactile buttons allow fast menu navigation without relying on a mobile device.

Clear visibility in low-light environments
On-adapter lens selection and system settings

Native Camera-Driven Autofocus for Manual PL Lenses

The NexusFocus F1 adapter acts as a control hub between the camera body and external motors, translating Sony PDAF and AI subject recognition data into precise lens movement. Unlike LiDAR-based systems, focus accuracy is derived directly from the camera sensor, eliminating parallax errors and maintaining consistent focus across the frame.

Supports Sony hybrid AF modes, including face and eye detection
Focus transition speed and AF responsiveness are adjustable in-camera
Designed for Sony E-mount cameras equipped with an AI processing unit

Three-Channel FIZ Motor Control

The system supports synchronized control of focus, iris, and zoom through external motors mounted on standard 15mm rods. Each motor can be assigned a function via onboard controls and delivers high torque with fast response for cine-style lenses. This kit includes one motor for focus control, and can be expanded with additional motors.

Focus, iris, and zoom are adjustable directly from the camera interface
Motors can also be assigned to auxiliary functions such as variable ND
Direction and function selection are configurable per motor

App-Based Calibration and Wireless Operation

Lens calibration and system configuration are handled through the Viltrox NexusFocus mobile app via Bluetooth. The adapter stores calibration data for hundreds of lenses, enabling quick recall across productions.

Automatic lens calibration and preset management via app
Real-time parameter preview and adjustment
Wireless control of focus, iris, zoom, and recording from a smartphone or tablet

Više informacija

Brand:	Viltrox
Model:	Nexus Focus F1
Compatible Lens:	PL-mount cinema lenses or CineMod PL-mount lenses
Compatible Camera:	Sony E-mount camera
Tripod Slot:	CU 1/4"x1(detachable)
Firmware Upgrade:	APP upgrades via Bluetooth (requires adapter-ring bottom power supply)
Dimensions:	Adapter ring:95 X 49.4X104.3mm
	Motor: 103.7X 36.4 X 60.5mm
	Power box: 78.1X 14.8 X 43.5 mm
Weight:	Adapter ring: approx.262g
	Motor: approx. 146.5g
	Power box: approx. 62g
