Teradek Sphere SDI 360_ SDI Real-Time Video Monitoring

Teradek Sphere SDI 360_ SDI Real-Time Video Monitoring

by Teradek

Dostupnost Beograd: Isporuka 20-30 dana

SKU

TRD-10-0361

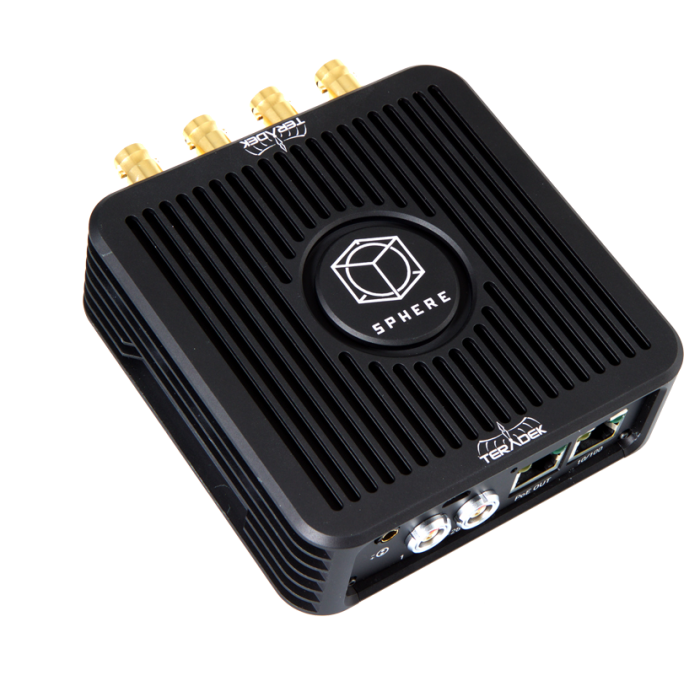

Sphere is flexible 360° monitoring solution for 4-camera VR rigs compatible with any HDMI or HD-SDI camera,

584.195,00 RSD 486.829,17 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

1 x Sphere
1 x Protective SKB Case - military-standard waterproof hard case with custom foam (13.5in x 9.5in x 6.5in - 34.29cm x 24.13cm x 16.51cm)
1 x Manfrotto - 2909 Super Clamp with 2907 Reversible Short Stud
1 x Sphere Mounting Bracket
1 x Ethernet Cable
1 x PSU 60W AC Adapter 24V to 2-pin Connector

Detalji

Compatible with any HDMI or HD-SDI camera, Sphere is the most flexible 360º monitoring solution for 4-camera VR rigs. Its 4 USB ports offer an integrated power solution for GoPro rigs and its stereo analog audio input allows you to embed the output of your soundboard right into the live feed.

Sphere also includes twin 2-Pin Connector connectors for redundant power and dual 10/100 Ethernet ports for Internet connectivity and attaching a second Sphere unit.

Više informacija

Video Inputs

4 x Full Size

Color Sampling

HDMI input supports RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2

Supported Resolutions

1080p 23.98/24/25/29.97/30
1080i 50/59.94/60
1080PsF 23.98/24/25
720p50/59.94/60
480p59.94, 576p50

Audio Input

4 x Embedded HDMI Audio Input

Video Compression

Baseline, Main and High Profile H.264

Supported Video Bitrate

250 Kbps to 10 Mbps

Additional

Built in Video Scaler and Deinterlacer

Network Protocols

TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Transport Protocols

TDS (supported by iOS app only for now)

Audio Compression

AAC-LC

Outputs Audio

1 x Analog Line adjustable gain

Dimensions

4.33"W x 4.33"D x 1.36"H (110 x 110 x 34.5 mm)

Interfaces

Http

WebUI

Switches

Factory Reset

Mobile App

iOS: Sphere App
• Requires iPad Pro or newer
• Supported streaming platforms: YouTube 360
• Supported Output Resolution:4Kp24 and lower
• Number of Supported Cameras: Up to 8 (requires 2 Spheres for more than 4 Cameras)
