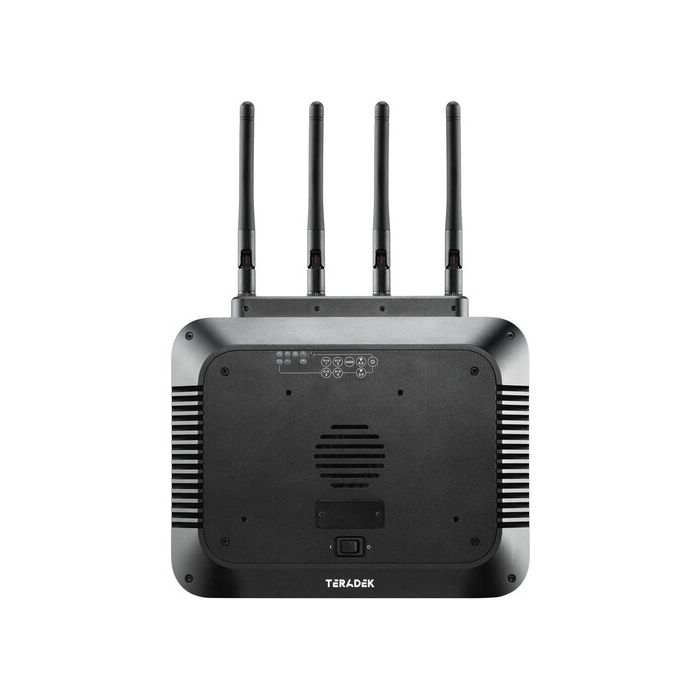

Teradek Link AX Wireless Access Point Router 5 Port

Teradek Link AX Wireless Access Point Router 5 Port

by Teradek

Dostupnost Beograd: Isporuka 20-30 dana

SKU

TRD-10-0065

Expand your production networking capabilities
Wi-Fi monitoring with multiple Serv devices
20 independent viewers using VUER HDR app

102.205,00 RSD 85.170,83 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

1 x Link AX Wireless Access Point Router 5 Port
1 x Lightstand Adapter 3/8in
1 x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable (182.88cm)

Detalji

Overview

Link AX expands your production networking capabilities with a ruggedized, set-ready aluminum chassis wrapped around a Wi-Fi 6 (802.11AX) router. Use Link AX for multiple workflow scenarios: more cameras and devices on your local production streaming network, camera-to-cloud for multiple cameras; simultaneous camera-control over multiple cameras.

Read the Link AX blog for an in-depth breakdown of real-world workflows.

Built for Production

Wi-Fi monitoring with multiple Serv devices*
20 independent viewers using VUER HDR app on mobile devices*
Add an internet connection to enable remote monitoring or camera-to-cloud workflows
Simultaneous control of multiple cameras over Wi-Fi

Rugged Design

Robust Aluminum Chassis
Gold-Mount and V-Mount Battery Plate Options
⅜” and ¼”-20 Mounting Points
5 customizable ethernet ports
USB-A for cellular modems like Node II with Teradek Data

*Serv Micro, Serv 4K, or Serv Pro required. Sold separately.

Više informacija

Dimensions	7.3” W x 5.7” D x 2” H [185mm x 145mm x 51mm]
Weight	Without battery plate: 37oz (1046g)
	With battery plate: 38.4oz (1090g)
Construction	Milled Aluminum
Mountability	2x 1/4”-20 threaded holes, 1x 3/4”-16 threaded hole
Interfaces
Configuration Interfaces	Feature rich web UI for configuration nd control
Switches	On/Off, Reset, and Reboot switches
Status Leds	Multiple LEDs for device, wireless, and network statuses
Network
Ethernet	4x 1Gbps Ethernet Ports
	1x 2.5Gbps Ethernet Port
Usb	USB 2.0
Wifi	2x2 2.4GHz MU-MIMO OFDMA 802.11 b/g/n/ax, max 20dBm per chain
	2x2 5GHz MU-MIMO OFDMA 802.11 a/n/ac/ax, max 20dBm per chain
	Frequency Range 2.412~2.472GHz, 5.180~5.825GHz
Encryption	802.11AX, 802.1x, 802.11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
Power
Power Input	2pin locking connector: 12-28V
Nominal Power Consumption	17.5W (Max)
Poe	Supports IEEE 802.3at 48~56V
Battery Plates	Integrated Gold or V mount battery plate (optional)
Environmental
Operating Temperature	-10ºC to 50ºC
Storage Temperature	-40ºC to 90ºC
Operating Humidity	5% to 95%
Storage Humidity	Max. 90%
