Sennheiser XSW 1-CI1-E

by Sennheiser

Dostupnost Beograd: Isporuka 20-30 dana

SKU

SEN-506998

SK-XSW Bodypack Transmitter
EM-XSW 1 UHF Receiver

40.236,00 RSD 33.530,00 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

Sennheiser XSW 1 CI1-A UHF Instrument Set (E-Band: 821 - 832/ 863 - 865 MHz)
CL1 Instrument Cable
NT12-5 CW Power Supply
2 x AA Batteries

Detalji

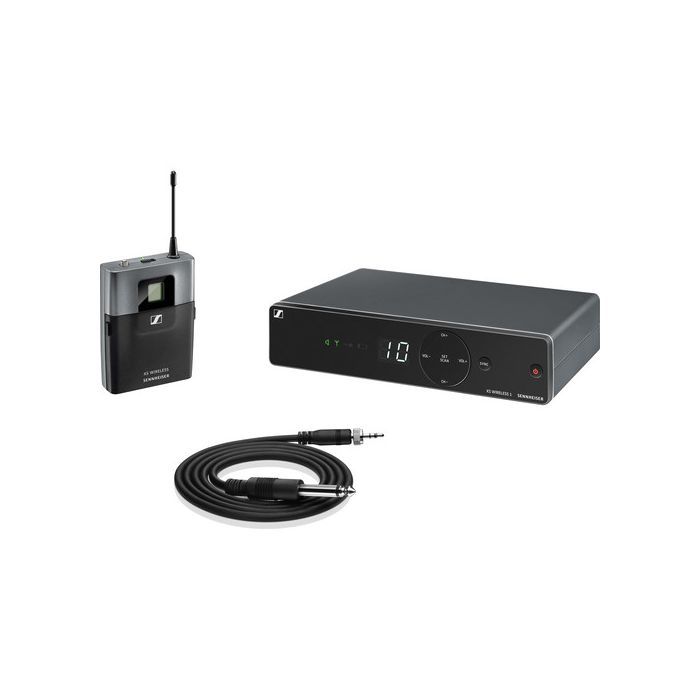

The XSW 1 CI1-E UHF Instrument Set from Sennheiser is an easy to use all-in-one wireless system for guitarists and bassists. It can be used for live sound applications to free the performer from instrument cables, which connect to a power amp or mixer.

The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and a 1/4" instrument cable. It is built with antenna-switching diversity reception and features automatic frequency management and synchronization via remote channel. Up to 10 compatible channels are available. Additionally, an AC power adapter and two AA batteries are also included.

Selectable UHF frequencies within a large bandwidth
Up to 10 compatible channels
Diversity reception

Više informacija

System
Modulation	Wideband FM
Frequency Range	E-Band: 821 - 832/ 863 - 865 MHz
Switching Bandwidth	Up to 24 MHz
Signal to Noise Ratio	≥ 103 dBA
Total Harmonic Distortion	≤ 0.9%
Temperature Range	Operation: 32 to 104°F (0 to +40°C)
Storage	-4 to 158°F (-20 to 70°C)
Transmitter Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)
Receiver
Principle	Double superheterodyne
Diversity	Antenna switching diversity via internal antennas
Sensitivity	< 3 μV at 52 dBA rms S/N (at peak deviation)
Frequency Response	50 Hz to 16 kHz (-3 dB)
Max Output Voltage	At Peak Deviation, 1 kHz AF
	1/4" (6.3 mm) Jack Socket (unbalanced): +6 dBu
	XLR Socket (balanced): +12 dBu
Adjustment Range	Audio: 45 dB, adjustable in 5-dB steps
Power Supply	12 VDC nominal, 300 mA
Squelch	Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Line/Mic Level	20 dB, switchable
Material of Construction	ABS housing
Dimensions	7.9 x 1.7 x 5.0" (200 x 42 x 127 mm)
Weight	12 oz (340 g)
Bodypack Transmitter
Output Power	10 mW
Frequency Response	Line: 50 Hz to 16 kHz
	Mic: 50 Hz to 16 kHz
Audio Input	1/8" (3.5 mm) jack socket
Input Voltage	Mic/Line at 3% THD: Typ. 1.V RMS mic / typ. 2.6 V RMS line at -30 dB gain
Power Supply	2 x AA batteries, 1.5 V
Operating Time	Approximately 10 hours
Adjustment Range	Transmitter Sensitivity: 0 to -30 dB, adjustable in 10 dB steps
Material of Construction	Rugged ABS housing
Dimensions	2.8 x 3.8 x 1.1" (71 x 96 x 28 mm)
Weight	3.4 oz (95 g)
Packaging Info
Package Weight	2.72 lb
Box Dimensions (LxWxH)	13.75 x 13.6 x 3.35"
