Sennheiser A 5000 CP

by Sennheiser

Rok isporuke: 20-30 dana

SKU

SEN-500887

Passive antenna

147.898,00 RSD 123.248,33 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

A 5000-CP
Adapter BNC to N
User Manual

Detalji

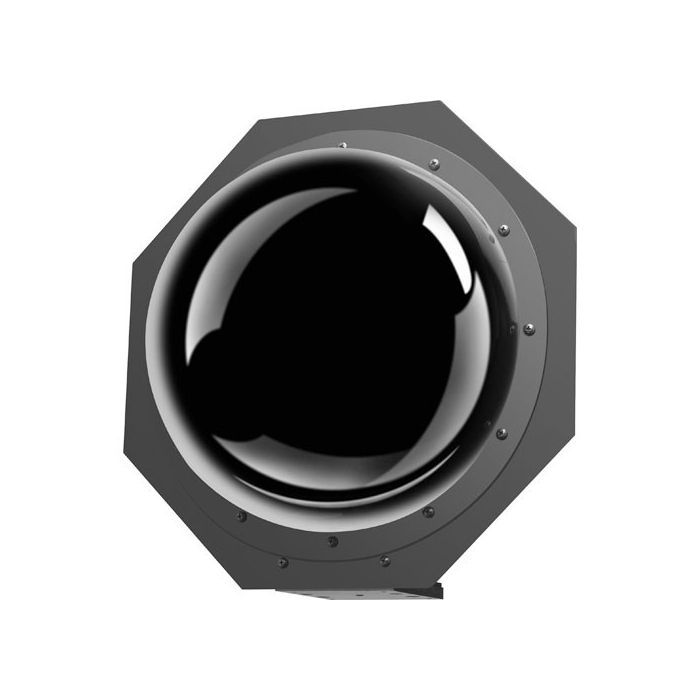

The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf' antennas.

The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.

Features

High Gain
Minimized Multipath
Broadband

Više informacija

Antenna Type	Circular Polarized Helical
Bandwidth	450 - 960 MHz
Gain	min. 8dBi
Beam Angle	40 degrees
Connector Type	N (female)
Mount	Lexan Plate 3/8-16 Helicoil
Dimensions	3.97 x 3.66 x 0.37" (101 x 93 x 9.5mm)
Weight	3 lbs (1.35 kg)
