Seetec SCH SDI HDMI Cross Converter

Rok isporuke: 20-30 dana

SKU

SCH

● 1 SDI Input, 2 SDI Output, and 1 HDMI Input,1 HDMI Output
● Double Power Supply System
● Standard 1/4 Screw Threads

19.578,00 RSD 16.315,00 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

1× Power Adapter
1× F970 Battery Plate

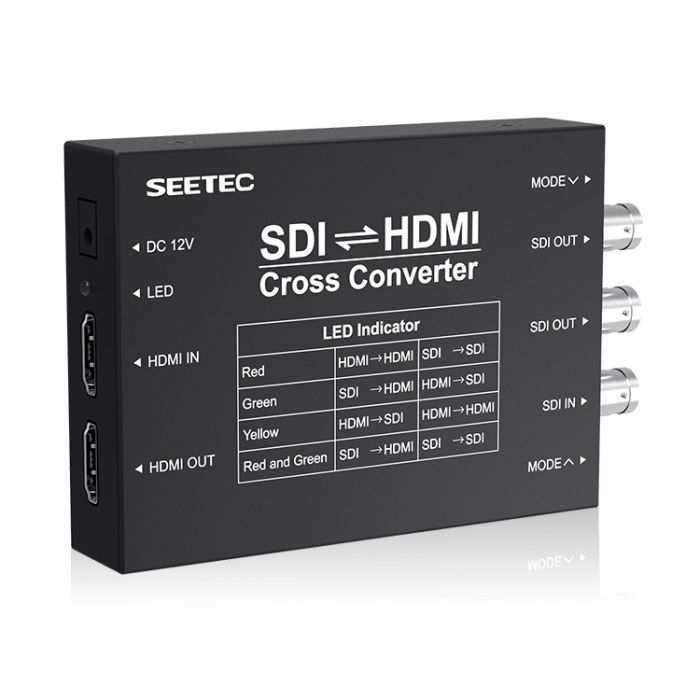

Seetec SCH SDI HDMI Cross Converter

Detalji

SEETEC New Release Mini Converters
The SEETEC Mini Converters are incredibly tiny broadcast quality video converters that come in three models, SDI ⇌ HDMI Cross Converter, SDI to HDMI Converter , HDMI to SDI Converter.
Standard “1/4-20”screw threads for flexible installing. You get HDMI and professional 3G-SDI connections for working with almost SD and HD formats. Flexible double power supply System that supports F970, D28S, E6, battery plate and also power adapter.

SDI ⇌ HDMI Cross Converter
Input: 1X HDMI；1X SDI
Output: 1X HDMI；2X SDI

Use Anywhere
Mini size broadcast quality converters!
SEETEC Mini Converters are so small you can use them anywhere! Whether you're carrying one in your laptop bag or in your outside broadcast van and road cases. They're perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!

Enjoy Perfect Visual Experience
High-performance digital chip, 1080P HD resolution, perfect show, make sure that the screen-definition picture quality without distortion.

Full Size Connections
Works with the cables you already have!
SEETEC Mini Converter feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, compatible with SD and HD-SDI equipment. Mini Converter SDI ⇌ HDMI Cross features One SDI input, Two SDI loop-out, One HDMI input, One HDMI output so you can connect it to multiple devices such as switchers, routers, monitors and more!

Easy Control Simple to set up
SDI ⇌ HDMI Cross Converter Provides LED indicators, to directive Signal Mode you choice. There's even a printed switch diagram on converter, so you can setting quickly, only need to press mode up/ down button to switch indictor color.
Red：HDMI to HDMI, SDI to SDI
Green：SDI to HDMI, HDMI to SDI
Yellow：HDMI to SDI, HDMI to HDMI
Red/ Green Flashing：SDI to HDMI，SDI to SDI

Flexible Double Power Supply System
The Mini Converter can be powered in two ways: with an DC adapter or lithium batteries. With F970 battery plate, lithium batteries are commonly used and are easy to find and replace, it's the best choice for outdoor operation.

Simple, Compact and Rugged
Built for any environment!
SEETEC Mini Converters are designed to be used anywhere, machined out of a solid block of metal! You can put them in equipment racks in the studio, on news trucks, or use them outside for live sports and other events.

Flexible Installing
Standard “1/4-20”screw threads for flexible installing.

Više informacija

Model

SCH (SDI ⇌ HDMI Cross Converter)

Input

1 X BNC	3G/HD/SD-SDI
1 X HDMI	HDMI

Output

2 X BNC	3G/HD/SD-SDI
1 X HDMI	HDMI

SDI Support Format

3G-SDI:1080P(60/59.94/50)

HD-SDI:1080P(30/29.97/25/24)

1080I(60/59.94/50)

1080PsF24

720P(60/59.94/50/30/25/24)

HDMI Support Format

1080P(60/59.94/50/30/29.97/25/24)

1080I(60/59.94/50)

1080PsF24

720P(60/59.94/50/30/25/24)

General

Power Consumption	≤4.2W
Input Voltage	DC 5～24V
Connector	DC 12V
Battery Plate	F970 (Standard); D28S, E6 (Optional)
WorkingTemperature	-20°C~60°C
Storage Temperature	-30°C~70°C
Unit Size (mm)	108.5L×78.8H×23D
Unit Weight	230g/ 260g (With F970 Plate)
