RED EVF Mount

by RED

Dostupnost Beograd: Isporuka 20-30 dana

SKU

790-0753

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution.

169.533,00 RSD 141.277,50 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

RED EVF Mount

2 x 15mm Rod (2.3")

Detalji

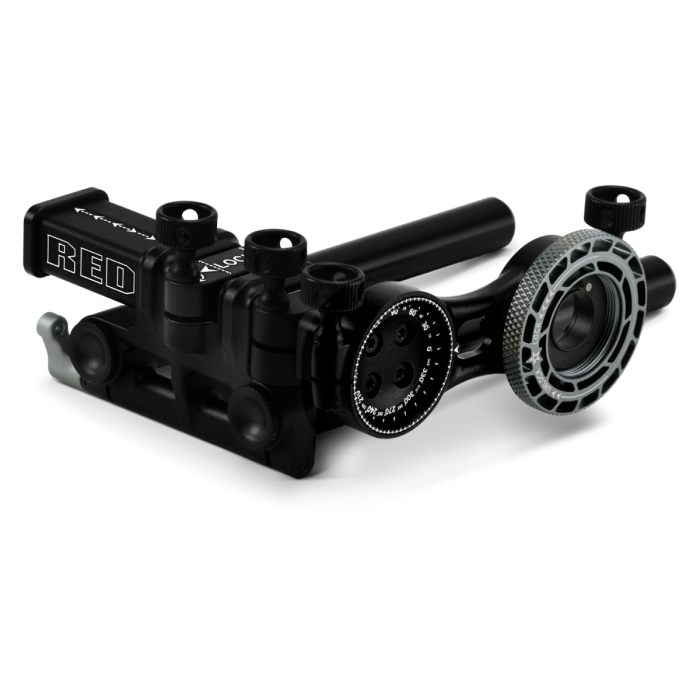

The RED® EVF Mount is a lightweight 15 mm LWS rod-based EVF mounting solution. RED designed the mount for use with the RED Compact EVF and the DSMC2® RED EVF (OLED), on DSMC3™ and DSMC2 camera systems.

The RED EVF Mount features a multi-axis telescoping design, which allows the operator to easily find the optimal position for every situation. The mount includes a quick-connect screw-on EVF clamp, laser etched distance and angle markers, machined thumb-screws for quick and easy adjustability, and support for the RED EVF Extension Arm (sold separately).

NOTES:

The 15 mm bracket is not included, refer to RED 15 mm Top Handle Bracket and V-RAPTOR XL Top 15 mm LWS Rod Support Bracket for DSMC3 mounting options.
The RED Compact EVF and the DSMC3 Adapter A are sold separately.

CAMERA COMPATIBILITY

DSMC2
RANGER
KOMODO-X
V-RAPTOR
V-RAPTOR XL

Više informacija

DIMENSIONS (excluding length of 6" rods)	Height: 4.68 in. (134.9 mm)
	Width: 5.31 in. (62.5 mm)
	Depth: 2.65 in. (67.3 mm)
WEIGHT	0.86 lbs (390.1 g)
MATERIAL	Aluminum
CAMERA MOUNTING	Via 15mm bracket. Refer to RED® 15mm Top Handle Bracket and V-RAPTOR® XL Top 15mm LWS Rod Support Bracket for DSMC3 mounting options.
EVF MOUNTING	Via attachment wheel
OPERATING TEMPERATURE	32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE	–4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY	0% to 85%, non-condensing
STORAGE HUMIDITY	0% to 85%, non-condensing
