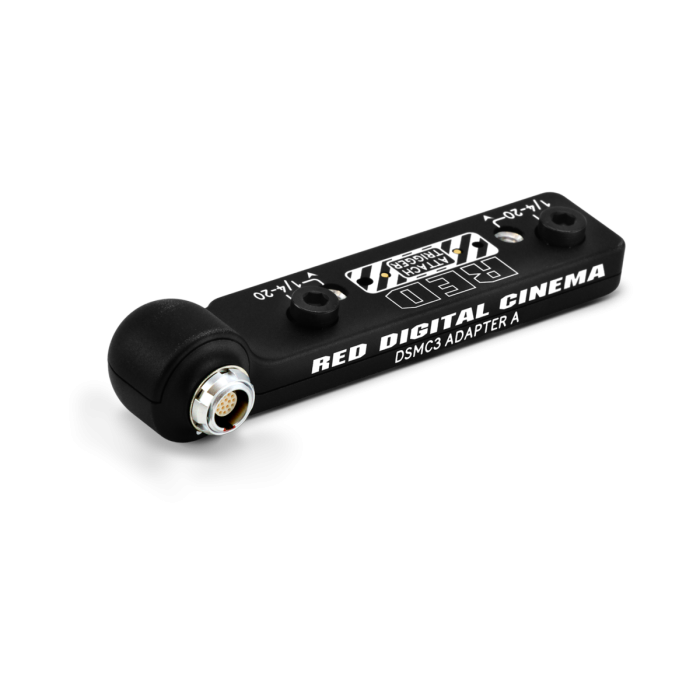

RED DSMC3 Adapter A

by RED

Dostupnost Beograd: Isporuka 20-30 dana

SKU

720-0069

DSMC3™ Adapter A attaches to the top of the KOMODO-X™ (firmware support coming late Q1 2024), the V-RAPTOR®, or the V-RAPTOR XL.

103.194,00 RSD 85.995,00 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

RED DSMC3 Adapter A

Detalji

DSMC3™ Adapter A attaches to the top of the KOMODO-X™ (firmware support coming late Q1 2024), the V-RAPTOR®, or the V-RAPTOR XL, and it provides a 16-Pin output that provides power, video, and control to the RED® Compact EVF and DSMC2® RED EVF (OLED).

The DSMC3 Adapter A includes a Run-Stop trigger pass-through that the operator can use for the V-RAPTOR, for the Compact Top Handles, and for Third-Party accessories.

NOTES:

The DSMC3 Adapter A is not compatible with the DSMC3 RED Touch 7.0" LCD or KOMODO Outrigger Handle.
To prevent damage to the camera, the DSMC3 Adapter A should only be attached or removed while the camera is powered off.

CAMERA COMPATIBILITY

KOMODO-X
V-RAPTOR
V-RAPTOR XL

Više informacija

DIMENSIONS	Height: 1.3 in. (33.0 mm)
	Width: 5.2 in. (132.1 mm)
	Depth: 1.42 in. (36.1 mm)
WEIGHT	0.25 lbs (113.4 g)
MATERIAL	Aluminum
EVF CONNECTION	16-Pin 1B LEMO socket
CAMERA MOUNTING	2x 1/4-20 captive mounting screws
ACCESSORY MOUNTING	2x 1/4-20 mounting points with trigger pass-through
OPERATING TEMPERATURE	32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE	–4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY	0% to 85%, non-condensing
STORAGE HUMIDITY	0% to 85%, non-condensing
