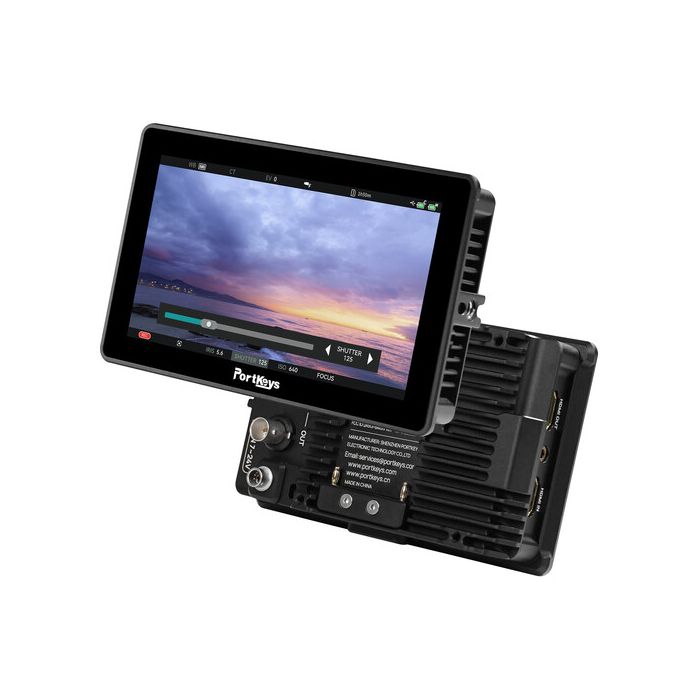

Portkeys BM5 IV Monitor

by PortKeys

Dostupnost Beograd: Isporuka 7-10 dana

Dostupnost Centralni magacin: Na stanju

SKU

PK-BM5-IV

PORTKEYS BM5 IV HDMI Touchscreen Monitor with Camera Control.

88.305,00 RSD 73.587,50 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Built-in CINENORM OS, brand new user interface & user experience.
Custom Pages, support custom up to 7 pages, adapt to different shooting scenes and roles.
False color, ARRI false color, user false color, and LOG false color.
User calibration, the user can import two sets of custom color calibration files, no need to send the monitor back to the factory for calibrating.
Split-screen monitoring, switching PBP, PIP, and H2V cropping mode freely.
User configuration store and loading, settings of the monitor can be saved to a USB drive and imported into the same model monitor.
Professional monitoring features, like Peaking, Zebra, Luma Waveform, Luma Histogram, and more.

Screen size	5.5" / 13.97cm
Dimensions	145.4 x 91.4 x 39.6 mm
Weight	362 g
Brightness	2000 nits
Contrast ratio	1000:1
Maximum power	17 W
Colour depth	10-bit (8+2 FRC)
Resolution	1920 x 1080
Input voltage	7–24 V
Material	Aluminium alloy
Viewing angle	178° H
	178° V
Fan	Yes
Signal conversion	HDMI / SDI conversion
TILTA nucleus control interface	UART
Camera control interface	Remote
Audio output	3.5 mm headphone jack
Signal input	3G SDI
	4K 60p HDMI
Supported battery model	NP-F970 / 960 / F750 / F550
Signal output	3G SDI
	4K 60p HDMI
USB-A	Upgrade firmware
Load LUT
Operating system	CINENORM OS
Power input	4-pin aviation connector + 2-pin LEMO
4K HDMI INPUT/OUTPUT SIGNAL
4096×2160p	23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
3840×2160p	23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
HDMI INPUT/OUTPUT SIGNAL
1920×1080p	23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
1920×1080psf	23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
1920×1080i	50Hz, 59.94Hz, 60Hz
1280×720p	50Hz, 59.94Hz, 60Hz
720×576p & 720×576i	50Hz
720×480p & 720×480i	50Hz, 59.94Hz, 60Hz
SDI INPUT/OUTPUT SIGNAL
1920×1080p	50fps, 59.94fps, 60fps
1920×1080p	50Hz, 59.94Hz, 60Hz YUV422
1920×1080p	23.98Hz, 24Hz, 25Hz, 29.94Hz, 30Hz YUV444/YUV422
1920×1080psf	23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz YUV444/YUV422
1920×1080i	50Hz, 59.94Hz, 60Hz YUV444/YUV422
1280×720p	50Hz, 59.94Hz, 60Hz YUV444/YUV422
