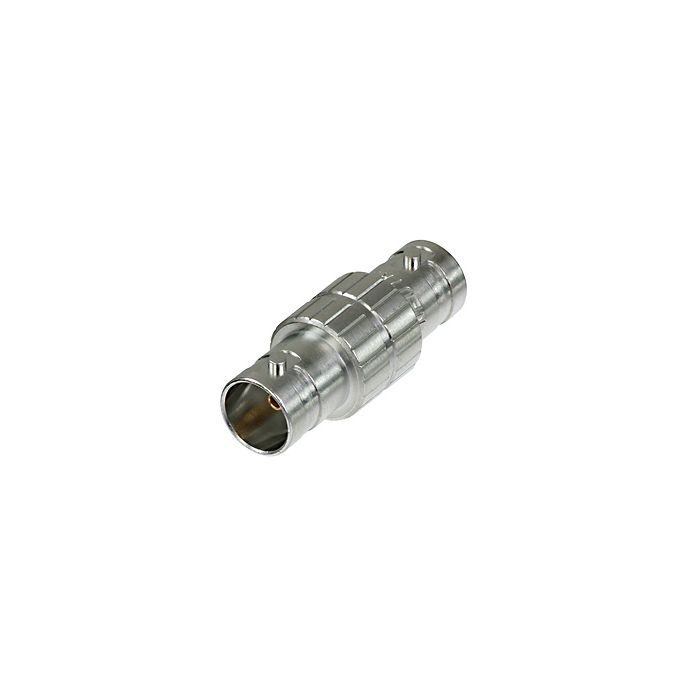

Neutrik NBB75FA Feed Through Coupler
by Neutrik
Rok isporuke:
7-10 dana
SKU
NEU-NBB75FA
Gold plated cage type center contact
1.416,00 RSD
1.180,00 RSD
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Neutrik NBB75FA
New cage type contact
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
| Product | |
| Title | NBB75FA |
| Connection Type | BNC 75 Ω |
| Gender | female |
| Electrical | |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤1.03/>37 dB up to 1 GHz ≤1.05/>32 dB up to 2 GHz ≤1.08/>28 dB up to 3 Ghz |
| Mechanical | |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Locking device | Bayonett |
| Material | |
| Contacts | Brass (CuZn39Pb3) (ground contact) |
| Insert | PTFE |
| Shell | Brass (CuZn39Pb3) |
| Environmental | |
| Temperature range | -30 °C bis +85 °C |
