Neumann KK 14

by Neumann

Rok isporuke: 20-30 dana

SKU

SEN-008694

For Modular Miniature Clip Mic System
Universal Close-Miking Applications
Cardioid, Electret Condenser Mic
12mm Small-Diaphragm Design
153 dB Maximum SPL
Rugged Titanium Housing
Built-In Shockmount
Mounts on MCM Gooseneck

37.556,00 RSD 31.296,67 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

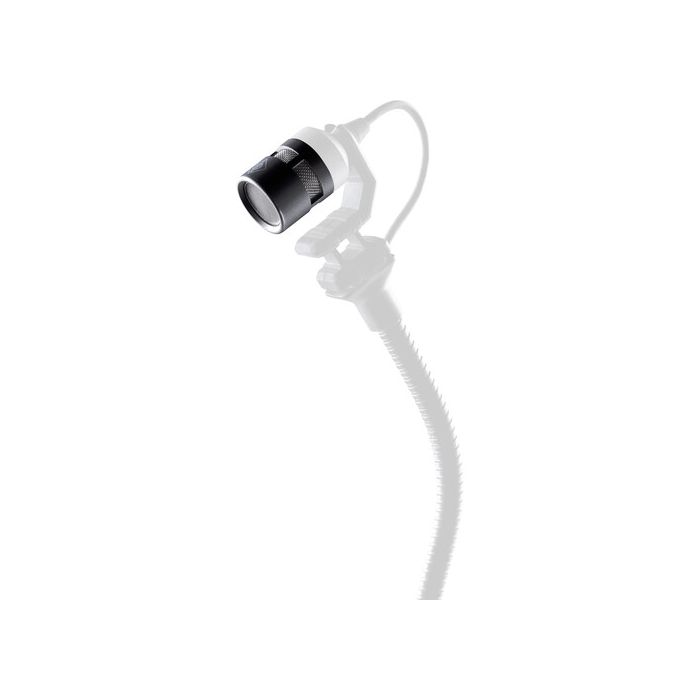

Neumann KK 14 Cardioid Capsule for MCM Microphone System

Detalji

The Neumann KK 14 Capsule is part of the modular Miniature Clip Mic (MCM) system designed for universal instrument close-miking applications including solo instrumentalists, big band and brass sections, and amplified orchestras in live applications. Elevating electret technology to Neumann standards, it delivers a staggering 153 dB maximum SPL to capture the details of both loud and very-soft instruments without adding distortion or self-noise. The KK 14 is encapsulated in a lightweight titanium housing to ensure stability and a long service life on the road. Assembled in Germany by hand to align with Neumann's high standards, the capsule delivers first-rate tonal consistency plus that Neumann aesthetics and handling.

KK 14 Capsule with Exceptional SPL Handling & Ultrawide Dynamic Range

The KK 14 features a 12mm diameter (small-diaphragm) electret-condenser element that delivers a truly natural, neutral, and reliable sound—even in challenging technical or acoustic situations. The capsule features a cardioid polar pattern that helps minimize the pickup of bleed from other instruments or stage noise, while allowing greater gain before feedback.
Capable of handling an extremely high 153 dB maximum SPL with an ultrawide 130 dB dynamic range, the KK 14 is deal for close-miking virtually any instrument, from bombastic drums to delicate strings.

Wide Variety of Mounting Options

The miniature capsule easily mounts on the SH 150 MCM gooseneck (available separately) so it can be reliably and accurately positioned over your instrument for optimal sound capture. Nine instrument-specific mounting clips are available for attaching the gooseneck to a wide variety of instruments including guitar, violin, cello, double bass, piano, drums, brass, woodwinds, and more.

Flexible Connectivity for Wired and Wireless Applications

Because it uses electret-condenser technology, the KK 14 can run on either +48V phantom power from a traditional mic preamp or plug-in power from a compatible wireless transmitter.
With its locking 3.5mm termination, the AC 31 cable (available separately) can be used to connect the KK 14 to the MCM 100 output stage module (available separately) for plugging the mic into a mixing board via XLR. The AC 31 cable can also be used to connect the capsule to a wireless transmitter with Sennheiser-compatible mic-input jack.

Neumann offers three more cables to work with other popular wireless transmitters including Lectrosonics, Shure, Zaxcom, Wisycom, and others.

AC 32 cable with LEMO 3-pin connector
AC 33 cable with Microdot connector
AC 34 cable with 4-pin mini-XLR connector

Više informacija

Operating Principle	Pressure Gradient Transducer
Polar Pattern	Cardioid
Frequency Response	20 Hz to 20 kHz
Sensitivity	3.6 mV/Pa ≅ -49 dBV, at 1 kHz into 1 Kilohm
Rated Impedance	10 Ohms
Signal-to-Noise Ratio	63 dB, CCIR (re. 94 dB SPL) 71 dB, A-Weighted (re. 94 dB SPL)
Equivalent Noise Level	31 dB, CCIR 23 dB, A-Weighted
Maximum SPL	153 dB SPL, with Supply = 10 V, Rfeed = 20 Kilohms, for THD < 0.5% 143 dB SPL, with Supply = 5 V, Rfeed = 8.25 Kilohms, for THD < 0.5%
Dynamic Range	130 dB, A-Weighted for THD < 0.5%
Maximum Output Voltage	12 dBu
Power Supply	Max 10 V, with Rfeed = 20 Kilohms
Current Consumption	0.22 mA
Output Connector	Proprietary, Locking
Housing	Titanium
Operating Temperature Range	32 to 104°F / 0 to 40°C
Operating Humidity Range	0 to 90%, Relative Humidity
Storage Temperature Range	-4 to 158°F / -20 to 70°C
Storage Humidity Range	0 to 95%, Relative Humidity
Dimensions	Diameter: 0.5" / 12 mm Length: 0.4" / 11 mm
Weight	0.1 oz / 2.3 g
