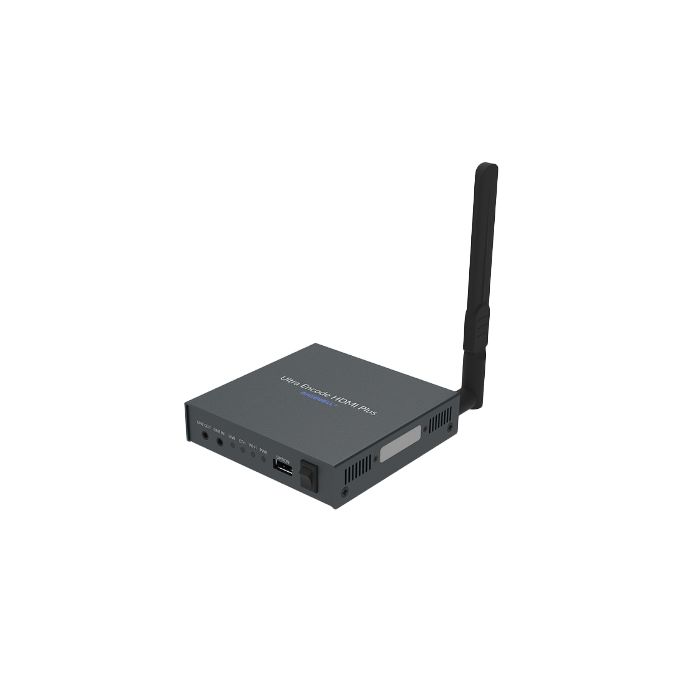

Magewell Ultra Encode HDMI Plus

• Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
• Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
• Control via web interface or optional Control Hub centralized management software

Input Features

• Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loop through signals
• Input & loop through 8-Channel, 24-bit HDMI embedded audio
• Input audio from 3.5 mm LINE IN

Encoding Features

• Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
• Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
• Support for H.264/HEVC video encoding
• Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
• Encoding 8-channel AAC and audio channels mapping
• Side-by-Side 3D video encoding

Streaming Features

• Natively support Facebook, Twitch, YouTube and WOWZA
• Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS
• over UDP/TS over RTP/TVU ISSP
• Allow simultaneous 6 sessions over multiple streaming protocols
• Support for streaming schedule

Recording Features

• Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
• Automatically upload recorded files to remote file storage platform
• Video recordings in MP4, MOV or TS format
• Normal recording and loop recording supported
• Support for recording schedule

Others

• PoE available
• Tally lights for NDI® HX3
• Remote control via Web GUI and Control Hub
• Provide HTTP APIs
