Lilliput Q15-8K 12G-SDI HDMI Monitor

by Lilliput

Dostupnost Beograd: Isporuka 20-30 dana

SKU

LIL-Q15-8K

The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal.

250.467,00 RSD 208.722,50 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

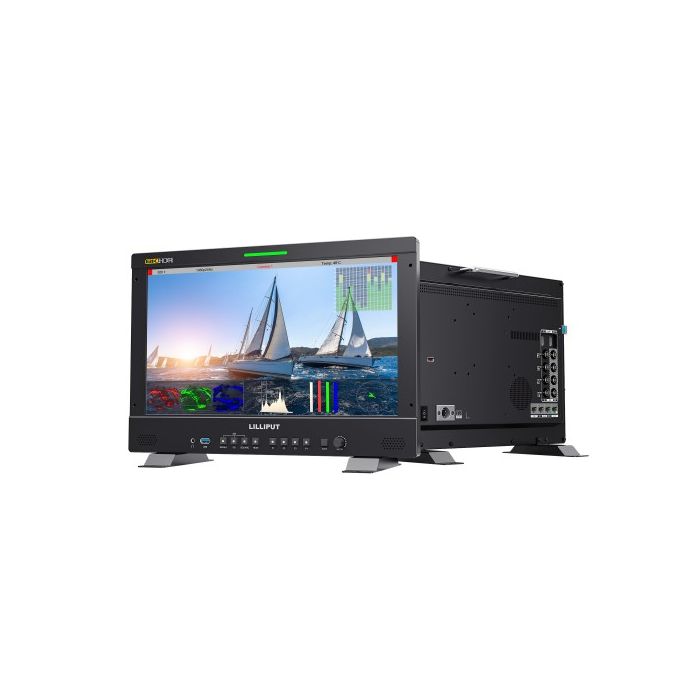

Lilliput Q15-8K 12G-SDI HDMI Monitor

Detalji

The Lilliput Q15-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.

With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.

Više informacija

Display
Aspect Ratio	16:9
Brightness	600cdm²
Colour Space	REC .709 and DCI-P (90%)
Contrast Ratio	1700 : 1
Resolution	3840 x 2160
Viewing Angle	170° / 170°
HDR	ST2084 300/1000/10000/HLG
LUT Support	3D LUT (.cube format)
Screen Size	15.6"
Supported Log Formats	SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
Supported Formats
HDMI Formats Supported	2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
SDI Formats Supported	4320p - 24/25/30/50/60, 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
SFP Formats Supported	2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
Monitor Specification
Video Inputs	SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Input
Video Outputs	SDI - 4x 12G (Supported 8K-SDI Formats Quad-Link, 1x HDMI 2.0 Output
Size
Dimensions	393 x 267 x 41.4 mm
Weight	3 Kg
Power
Input Voltage	DC 12V - 24V
Power Consumption	<= 60W (15V)
Environment
Operating Temperature	0°C - 50°C
Storage Temperature	-20°C to 60°C
