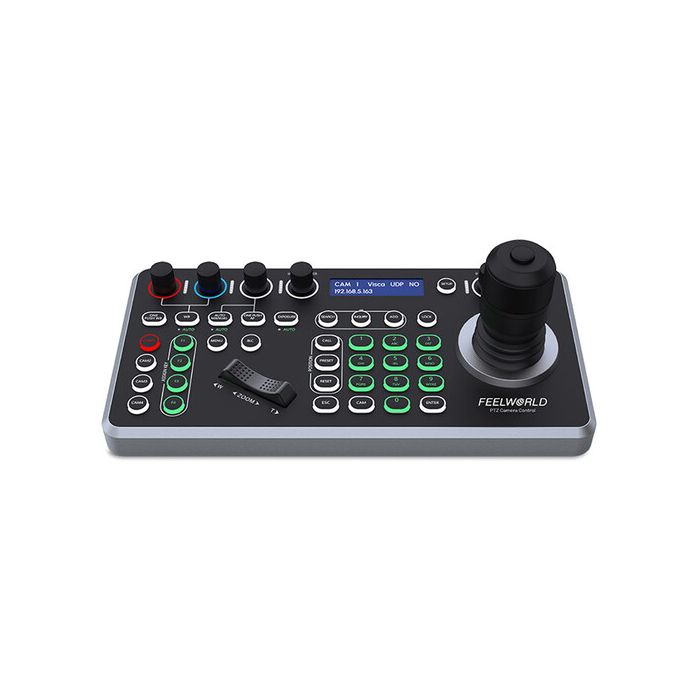

Feelworld KBC20N NDI PTZ Camera Controller

by FeelWorld

Rok isporuke: 20-30 dana

SKU

KBC20N

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

FeelWorld KBC20N NDI PTZ Camera Controller with Joystick
Power Adaptert
RS45-DIN8 Cable

Detalji

Multiple-Protocol PTZ Controller with NDI

Ideal for streaming, live event, educational, and house-of-worship setups, the KBC20N NDI PTZ Camera Controller with 4D Joystick from FeelWorld enables you to control your cameras using NDI, ONVIF, IP VISCA, VISCA, Pelco-D/P, and RS-232, -422, and -485 protocols. It uses Ethernet, RS-232, RS-422, and RS-482 terminals to control up to 255 cameras via network and analog modes.

Variable 4D Joystick

The intuitive control panel provides a zoom rocker, focus, iris, and speed knobs, LCD status display, and camera selection buttons.
It features a 4D joystick with smooth pan, tilt, zoom, and focus control for precise live production moves.

Real-Time Display

The built-in LCD screen provides a real-time display of each camera's working status, improving efficiency.

Control up to 255 PTZ Cameras

Connect the controller and cameras to the same LAN and IP address to control up to 255 PTZ cameras.
Four shortcut buttons enable you to quickly switch between multiple cameras and 255 presets let you easily recall positions.
Use Cat 6e or higher cable to control your cameras from up to 328' away.

Power Options

Power the KBC20N controller using the included 12 VDC power supply or via PoE (Power over Ethernet) using your router or network switch.

Više informacija

General
Number of Supported Cameras	255 Channels
Supported Control Protocols	IP
	NDI
	Pelco-D
	Pelco-P
	RS-232
	RS-422
	VISCA
Control I/O	1x RJ45 Output
	1x D-Sub 9-Pin (RS-232) Output
	1x Phoenix (RS-422) Output
Controls	1x Joystick
	1x Rocker
	6x Knobs
	18x Multifunction Buttons
	12x Multifunction, Camera Selection Buttons
Presets	255
Display
Panel Type	LCD
Power
PoE Support	Yes
Power Connectors	1x Barrel / Coaxial
Power Consumption	0.6 W
Input Power	12 VDC at 1 A
Physical
Operating Conditions	0 to 32°F / -17 to 0°C up to 90% Humidity
Security Lock Support	No
Dimensions	12.6 x 7.1 x 3.9" / 32 x 18 x 10 cm
Weight	3.73 lb / 1.69 kg
