Power the KBC20 controller using the included 12 VDC power supply or via PoE (Power over Ethernet) using your router or network switch.

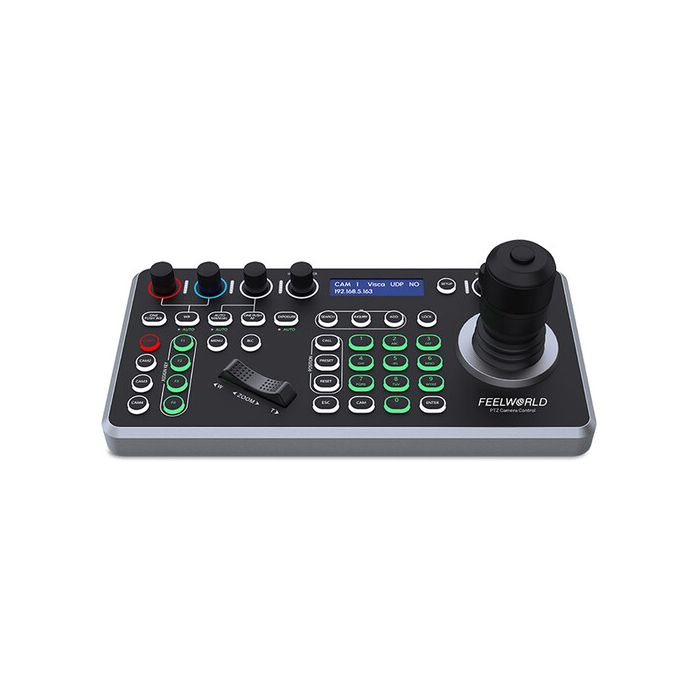

Feelworld KBC20 PTZ Camera Controller
by FeelWorld
Dostupnost Beograd:
Isporuka 20-30 dana
SKU
KBC20
The KBC20 PTZ Camera Controller with 4D Joystick from FeelWorld enables you to control your streaming, live event, educational, or house-of-worship setup using ONVIF, IP VISCA, VISCA, Pelco-D/P, and RS-232, -422, and -485 protocols.
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- FeelWorld KBC20 PTZ Camera Controller with Joystick
- 12 VDC Power Adapter
- RS45-DIN8 Cable
Multiple-Protocol PTZ Controller
The KBC20 PTZ Camera Controller with 4D Joystick from FeelWorld enables you to control your streaming, live event, educational, or house-of-worship setup using ONVIF, IP VISCA, VISCA, Pelco-D/P, and RS-232, -422, and -485 protocols. It uses Ethernet, RS-232, RS-422, and RS-482 terminals to control up to 255 cameras via network and analog modes.
Variable 4D Joystick
The intuitive control panel provides a zoom rocker, focus, iris, and speed knobs, LCD status display, and camera selection buttons. It features a 4D joystick with smooth pan, tilt, zoom, and focus control for precise live production moves.
Real-Time Display
The built-in LCD screen provides a real-time display of each camera's working status, improving efficiency.
Control up to 255 PTZ Cameras
Connect the controller and cameras to the same LAN and IP address to control up to 255 PTZ cameras. Four shortcut buttons enable you to quickly switch between multiple cameras and 255 presets let you easily recall positions. Use Cat 6e or higher cable to control your cameras from up to 328' away.
Power Options
| General | |
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | IP |
| ONVIF | |
| Pelco-D | |
| Pelco-P | |
| RS-232 | |
| RS-422 | |
| RS-485 | |
| VISCA | |
| Control I/O | 1x Block 5-Pin (Pelco-D, Pelco-P, RS-422, VISCA) |
| 1x RJ45 (Pelco-D, Pelco-P, RS-232, RS-422, RS-485, VISCA) | |
| Other I/O | 1x Block 8-Pin (Tally) |
| 1x RJ45 (LAN) | |
| Controls | 1x Joystick |
| 6x Zoom, Shutter Speed, Manual-Focus, Gain, Camera Movement Speed Knobs | |
| 1x Zoom Rocker | |
| 4x Camera Selection Buttons | |
| Programmable, Iris Adjustment, Auto-Focus, Manual-Focus, Preset Selection, White Balance Buttons | |
| Presets | 255 |
| Display | |
| Panel Type | LCD |
| Touchscreen | No |
| Power | |
| PoE Support | Yes: PoE+ 802.3at, PoE 802.3af |
| Power Connectors | 1x Barrel / Coaxial |
| Power Consumption | ≤6 W |
| Input Power | 12 VDC at 1 A |
| Physical | |
| Operating Conditions | 32 to 122°F / 0 to 50°C at 1 to 90% Humidity |
| Storage Conditions | -4 to 158°F / -20 to 70°C |
| Security Lock Support | Kensington Lock Slot |
| Dimensions | 10.6 x 5.3 x 4.3" / 270 x 135 x 110 mm |
| Weight | 2.9 lb / 1.3 kg |
