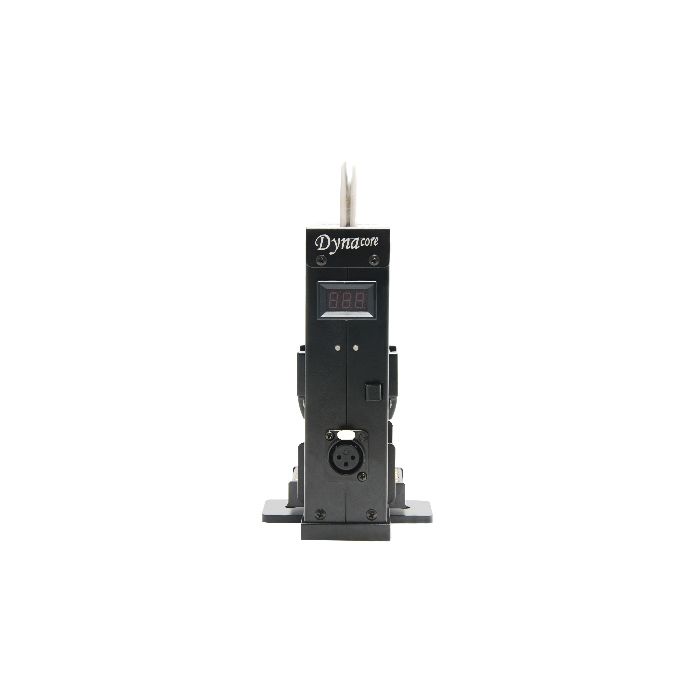

Dynacore D-2BS-24 Battery Extender

by Dynacore

Rok isporuke: 20-30 dana

SKU

DY-D-2BS-24

D-2BS/A-24 is the power station designed to integrate the power of 2pcs V-Mount and Gold Mount batteries into a power source as a 24V voltage output.

27.863,00 RSD 23.219,17 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

Dynacore D-2BS-24 Battery Extender

Detalji

It can supply power of up to 240W output(24V, 10A).
To reach the best output performance, 2pcs batteries with the same capacity and charging status are required.
Battery models with bigger capacity are better.

LCD Display For Output Voltage
24.5V(+/-5mV on no-load,+/-1.2% on full load)

2 Channel Low Voltage Alarm Indicator LED Battery Indication
Color Red=Under/Over Voltage
Color Green=Good
Green Blinking=Battery Low

3 Pin Female XLR Output
24V, 10A, 240W(Max)

Hexagon Connector Makes It Easy To Be Connected To The Tripod With Convi Clamp.

D-2BS-24 Integrated Mount Plate Design Makes The Product Compact

D-2BS-24 For V-Mount Batteries
D-2BA-24 For Gold Mount Batteries

Više informacija

DC Input	12-17V
DC Output	24.5V
Outlet	1 x 3-pin Female XLR
DC Output Max Power	10A,240W
Applicable battery	V-Mount batteries
Dimension	150X73X220mm(Including Metal Cylinder)
Weight	1.10Kg(Including Metal Cylinder)
