DPA VO4099U d:vote 4099 Clip Microphone, Universal

DPA VO4099U d:vote 4099 Clip Microphone, Universal

by DPA

Dostupnost Beograd: Isporuka 20-30 dana

SKU

DPA-VO4099U

For Use With Unusual Shaped Instruments, Compact Size, 90-Degree Mounting System, 5.5" Adjustable Gooseneck, Includes Hook and Loop Fastener Clip, Includes XLR Adapter, Detachable Cable

67.645,00 RSD 56.370,83 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

DPA Microphones d:vote 4099U Universal Clip Microphone
XLR Adapter
Belt Clip
Clip with Hook and Loop Fastener

Detalji

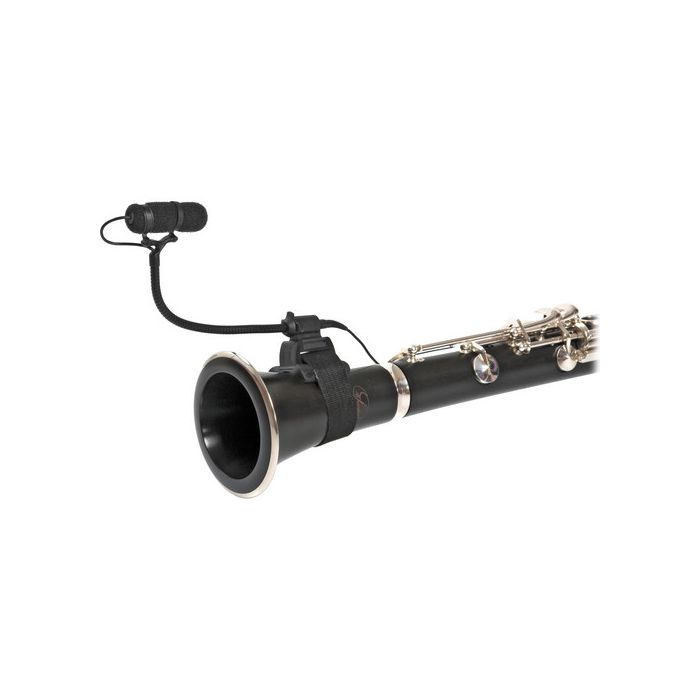

The d:vote 4099U Universal Clip Microphone from DPA Microphones is designed to be used with slim bodied or unusual-shaped instruments. It includes a hook and loop fastener strap that can attach the mic to the circumference of difficult to mic instruments such as oboes, clarinets, bassoons, recorders, and flutes. The clip can also be rotated 90-degrees, doubling the amount of mounting positions available.

The microphone has a compact, 1.8-inch length body and comes with a 5.5-inch gooseneck for flexibility in positioning. It has a detachable cable that terminates in a Microdot connector, providing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. An XLR adapter is included for use with a wired system with 48-volt phantom power.

Više informacija

Transducer Type	Pre-Polarized Condenser
Polar Pattern	Supercardioid
Principle of Operation	Pressure Gradient
Frequency Range	20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz
Sensitivity	6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level	Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted)
Signal to Noise Ratio	71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD)	< 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine
Dynamic Range	100 dB
Maximum SPL	142 dB (Peak Before Clipping)
Output Impedance	MicroDot: 30 to 40 Ω, XLR: 100 Ω
Cable Drive Capability	XLR: 984' (300 m)
Output Balance Principle	Signal balanced with XLR adapter
CMRR	XLR Adapter: > 60 dB at 50 Hz to 15 kHz
Power Supply	Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter
Current Consumption	Microdot: 1.5 mA XLR Adapter: 3.5 mA
Connector	Microdot XLR Adapter Included
Polarity	Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Operating Temperature	-40 to 113°F (-40 to 45°C)
Relative Humidity	Up to 90%
Cable Length	6' (1.8 m)
Gooseneck	Length: 5.5" (140 mm)
Capsule Diameter	0.2" (5.4 mm)
Microphone Length	1.8" (45 mm)
Weight	1.4 oz (41 g)

Packaging Info
Package Weight	1.0 lb
Box Dimensions (LxWxH)	9.7 x 5.7 x 2.9"
