DPA VO4099T d:vote 4099 Clip Microphone for Brass

by DPA

Dostupnost Beograd: Isporuka 20-30 dana

SKU

DPA-VO4099T

For Trumpet, Trombone, or Other Brass, Fits Any Mute, One-Hand Mounting, 5.5" Adjustable Gooseneck, Detachable Cable
Includes XLR Adapter with Belt Clip

67.645,00 RSD 56.370,83 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

DPA Microphones d:vote 4099T Clip Microphone for Brass Instruments
XLR Adapter
Belt Clip

Detalji

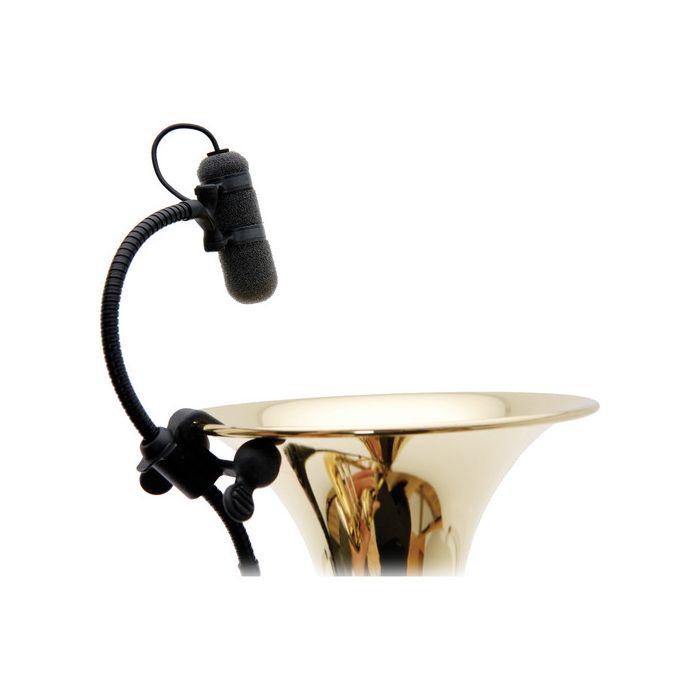

The d:vote 4099T Clip Microphone for Brass Instruments from DPA Microphones is designed for miking trumpet, trombone, or other brass instruments. It can be mounted with one hand and will work on a brass instrument with or without a mute. It has a maximum SPL rating of 152dB to handle a brass instrument's high output. The 4099T has a pre-polarized condenser capsule that is attached to a 5.5" gooseneck and provides flexibility for mic placement. It terminates in a MicroDot connector, making it compatible DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter is included with a belt clip for use in a wired system with 48-volt phantom power.

Više informacija

Transducer Type	Pre-Polarized Condenser
Polar Pattern	Supercardioid
Principle of Operation	Pressure Gradient
Frequency Range	20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz, Second Order Low-Cut Filter @ 80 Hz with XLR Adapter
Sensitivity	2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level	Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted)
Signal to Noise Ratio	66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD)	< 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine
Dynamic Range	95 dB
Maximum SPL	152 dB (Peak Before Clipping)
Output Impedance	MicroDot: 30 to 40 Ω, XLR: 100 Ω
Cable Drive Capability	XLR: 984' (300 m)
Output Balance Principle	Signal balanced with XLR adapter
CMRR	XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
Power Supply	Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter
Current Consumption	MicroDot: 1.5 mA XLR Adapter: 3.5 mA
Connector	MicroDot XLR Adapter Included
Polarity	Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Operating Temperature	-40° to 113°F (-40° to 45°C)
Relative Humidity	Up to 90%
Cable Length	6' (1.8 m)
Gooseneck	Length: 5.5" (140 mm)
Capsule Diameter	0.2" (5.4 mm)
Microphone Length	1.8" (45 mm)
Weight	1.1 oz (31 g)

Packaging Info
Package Weight	1.1 lb
Box Dimensions (LxWxH)	9.8 x 5.6 x 2.9"
