Decimator DMON-QUAD

Dostupnost Beograd: Isporuka 20-30 dana

SKU

DD-DMON-QUAD

DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications.

52.733,00 RSD 43.944,17 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

DECIMATOR DMON-QUAD 4-Channel 3G-SDI Multiviewer
Power Supply
HDMI Cable
USB Cable

Detalji

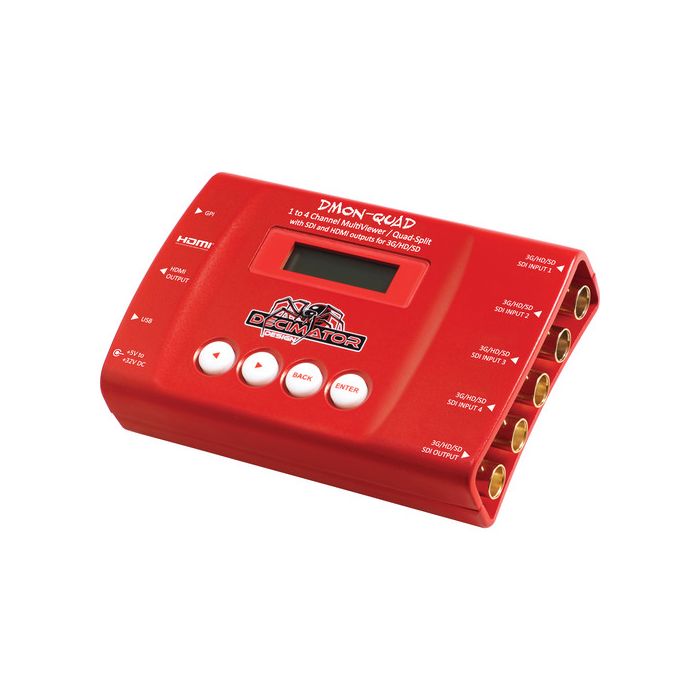

The DMON-QUAD from DECIMATOR is a compact 4-channel 3G-SDI multiviewer and multiplexer for use in studios, post houses, and other professional video applications. It supports a variety of resolutions and formats up to 1080p60 over SDI, and can arbitrarily mix formats and aspect ratios. The four SDI inputs can be output simultaneously over the HDMI or SDI outputs for a quad-view display. Tally information can be supplied via the RJ-45 connector.

Supports 3G-SDI level A and B on inputs and output, allowing conversion between 3G level A and B
Comes with pre-programmed layouts, user-customized layouts possible
16-character UMD overlay and 8-channel audio metering overlay per window with individual on/off, custom positioning, and size adjustment
Horizontal and/or vertical image flipping per window
Audio ID overlay
Tallies can be applied to either tally boxes or the border (tally boxes allow for up to 4 tallies per window)
Fast switching between inputs using full-screen scaling
Selectable output format in both Full-Screen Multi-Viewer mode
Low latency frame buffering for each input allowing non-synchronous inputs
Linked SDI and HDMI outputs
Each SDI inputs is resolution and frame rate independent
Pass through mode allows an unprocessed signal to be output from both SDI and HDMI terminals simultaneously
Robust aluminum enclosure

Više informacija

Inputs	4 x BNC, SD/HD/3G-SDI 1 x USB Mini-B, control and updates 1 x RJ-45, UMD and Tallies via RS-422/485
Outputs	1 x SD/HD/3G-SDI 1 x HDMI
Resolution Support	SDI: 1080p 23.98/24/29.97/30/50/59.94/60 1080PsF 23.98/24/29.97/30 1080i 50/59.94/60 720p 23.98/24/29.97/30/50/59.94/60 NTSC PAL HDMI: 1080p 23.98/24/29.97/30/50/59.94/60 1080PsF 23.98/24/29.97/30 1080i 50/59.94/60 720p 23.98/24/29.97/30/50/59.94/60 NTSC PAL
Power	Input: 5-32 VDC, locking coaxial (center positive)
Dimensions	3.1 x 4.8 x 1.2" / 8 x 12.3 x 3 cm
