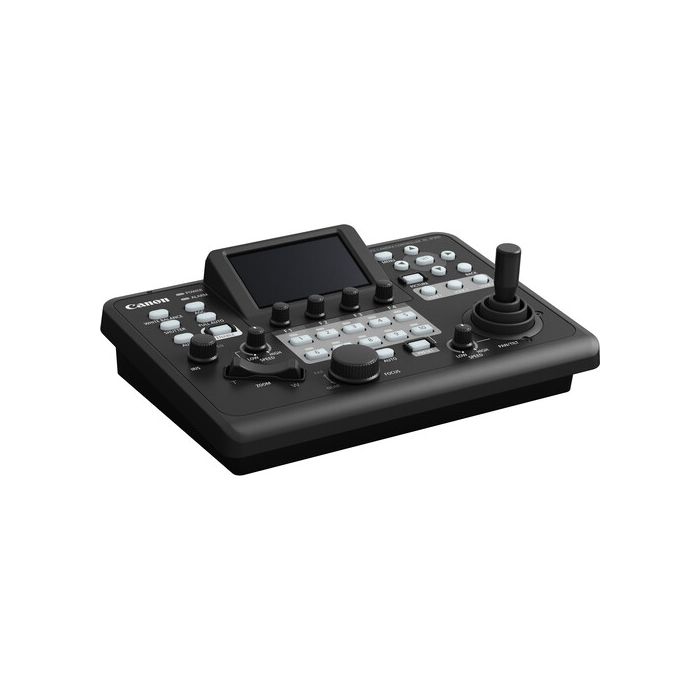

Canon RC-IP300 Touchscreen PTZ Joystick Controller
by Canon
Rok isporuke:
20-30 dana
SKU
7657C003AA
The RC-IP300 PTZ Camera Controller provides quick, tactile IP control for up to 200 supported Canon PTZ cameras. This compact controller features a 3.5" touchscreen display offering OSD menus for compatible cameras, camera configurations, live views, and touch autofocus.
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Canon RC-IP300 PTZ Camera Controller
- Power Supply
Compact, Advanced PTZ Controller
The RC-IP300 PTZ Camera Controller provides quick, tactile IP control for up to 200 supported Canon PTZ cameras. This compact controller features a 3.5" touchscreen display offering OSD menus for compatible cameras, camera configurations, live views, and touch autofocus. Power the RC-IP300 via PoE (power over Ethernet) or the included power supply.
3.5" Touchscreen Panel
- The 3.5" touchscreen at the center of the RC-IP300 controller provides operations menus, live feeds for up to nine cameras per page, and multiview displays in both 2x2 and 3x3 layouts.
- Designed for easy multicamera control, the RC-IP30 supports Canon's auto-tracking, autofocus, auto loop, and crop control for supported cameras.
- Indexed, single-page menu tabs let users easily navigate the system.
Joystick, Zoom Rocker, and Customizable Buttons
The RC-IP300 incorporates a joystick, zoom rocker, focus dial, 7 knobs, and 12 programmable user buttons for tactile camera control.
Clear Operation Layout
- The easy-to-navigate layout provides a dual-pixel autofocus guide for supported cameras.
- Thumbnail images for preset positions and trace routes.
- Waveform, vectorscope, and area markers are clearly displayed.
Power Options
PoE compatibility enables control, video, and power for your RC-IP300 via a single Ethernet cable. You can also power the RC-IP300 using the included AC adapter.
| General | |
| Number of Supported Cameras | 200 Channels via IP (10 Per Group) |
| 1 Channels via Serial | |
| Supported Control Protocols | Canon XC |
| NU | |
| RS-422 | |
| Control I/O | 1x RJ45 (IP Control, LAN) Output |
| 1x RJ45 (RS-422) Output | |
| Other I/O | 1x DE-9/DB-9 (GPI) Input/Output |
| 1x USB-A Input/Output | |
| Video I/O | 1x RJ45 Input |
| Controls | 1x Pan/Tilt Joystick |
| 1x Zoom Rocker | |
| 7x Programmable Knobs | |
| 10x Camera Selection Buttons | |
| 12x Multifunction Buttons | |
| Presets | 100 via IP |
| Display | |
| Panel Type | LCD |
| Size | 3.5" |
| Native Resolution | 1280 x 720 |
| Touchscreen | Yes |
| Power | |
| PoE Support | Yes: PoE+ 802.3at |
| Power Connectors | 1x Barrel / Coaxial |
| Power Consumption | 12.4 W |
| Input Power | 12 VDC |
| Physical | |
| Operating Conditions | 32 to 104°F / 0 to 40°C |
| Security Lock Support | No |
| Dimensions | 10 x 7.1 x 2.9" / 255 x 180 x 74 mm |
| Weight | 2.9 lb / 1.3 kg |
