Blackmagic Design URSA Cine Studio Viewfinder
by Blackmagic Design
Dostupnost Beograd:
Isporuka 20-30 dana
SKU
CINEURSAB/EVFST7

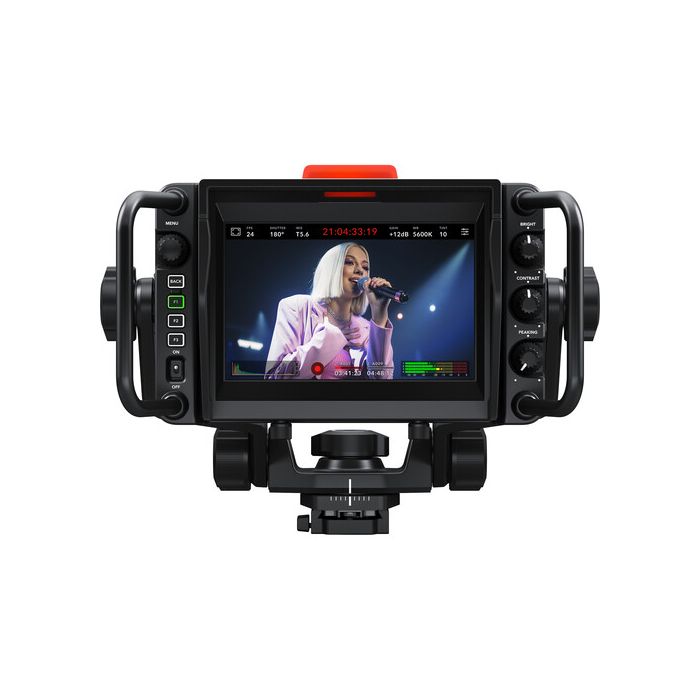

Use the URSA Cine Studio Viewfinder from Blackmagic Design to get high-resolution monitoring for your live URSA Cine event capture. This 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD touchscreen, built-in grab handles, and a detachable sun hood to prevent glare.
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Blackmagic Design URSA Cine Studio Viewfinder
- Sun Hood
- Mounting Plate
Use the URSA Cine Studio Viewfinder from Blackmagic Design to get high-resolution monitoring for your live URSA Cine event capture. This 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD touchscreen, built-in grab handles, and a detachable sun hood to prevent glare. It features screen overlays, multiple controls, and a single USB-C video/power/control cable. Mount the viewfinder on your URSA Cine 12K camera using its bottom V-lock mount.
Compatibility
- Blackmagic URSA Cine 12K LF 100G
- Blackmagic URSA Cine 12K LF
- Blackmagic URSA Cine 17K 65
- Blackmagic URSA Cine Immersive 100G
- Blackmagic URSA Cine Immersive
Controls
Touchscreen, dial, knobs, and three customizable function buttons for settings, shortcut features, and navigating menus.
Handles
Built-in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan, and tilt adjustments.
Mounting Options
Quick release V-lock mounting bracket for attaching the viewfinder to the URSA Mini top handle.
Tally
Large LED tally light.
Metadata Support
Detects camera information embedded in the SDI signal, including status information, frame guides, focus peaking, tally, and more.
Screen Interface
On-screen meters and status information, including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
| Display | |
| Panel Type | TFT LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Touchscreen | Yes |
| Maximum Brightness | 2000 nits / cd/m2 |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | False Color, Focus Assist, Focus Peaking, Screen Markers |
| Inputs / Outputs | |
| Inputs/Outputs | 1x USB-C Video Input |
| 1x Barrel Power Input | |
| Video Format | USB (10-Bit 4:2:2 YUV) |
| 1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| Input Power | 12 VDC |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 90% Humidity |
| Storage Conditions | -4 to 140°F / -20 to 60°C up to 90% Humidity |
| Tripod/Accessory Mounting | Bottom/Bracket |
| 1x V-Lock | |
| Dimensions | 11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket) |
| Weight | 5.27 lb / 2.39 kg |
