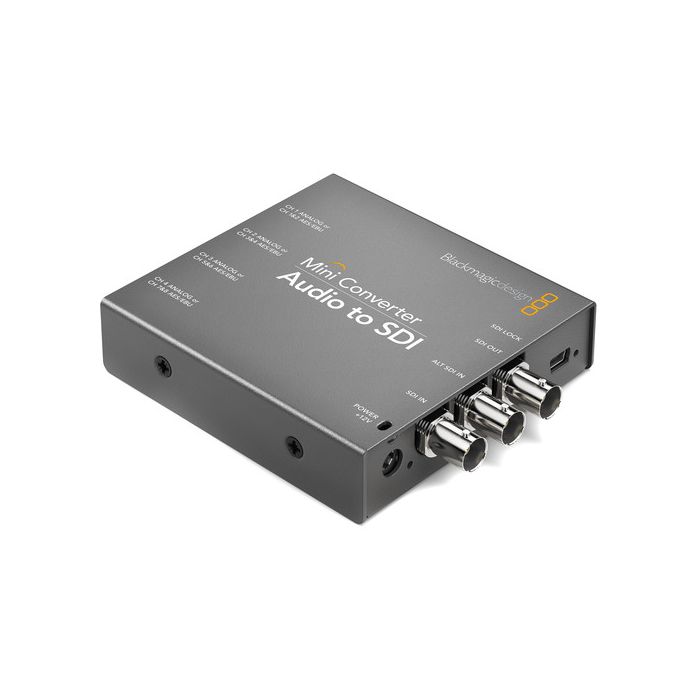

Blackmagic Design Mini Converter - Audio to SDI 2

Blackmagic Design Mini Converter - Audio to SDI 2

Rok isporuke: 7-10 dana

SKU

CONVMCAUDS2

Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design.

37.136,00 RSD 30.946,67 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

Blackmagic Design Mini Converter Audio to SDI
12V Universal Power Supply
Set of International Socket Adapters (for All Countries)

Detalji

Embed audio into 3G/HD/SD SDI sources in up to 1080p60 resolution with the Mini Converter Audio to SDI from Blackmagic Design. Connect up to four channels of balanced analog or eight channels of AES/EBU audio via four 1/4" jacks.

In addition to a dedicated SDI input the converter also features a redundant SDI input that allows you to run a back-up cable in case the first is lost in any way. This is useful in mission critical applications, especially outdoors or in crowded venues where there a higher chance of damage to the cable.

Više informacija

SDI Input	1 x SDI on BNC (switchable between 3G/HD/SD) 1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost)
Audio Input	4 x 1/4" jacks support 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio
SDI Output	1 x SDI on BNC (switchable between 3G/HD/SD)
SDI Auto Switching	Auto-detection of 3G/2K/HD/SD SDI SDI
Updates and Configuration	Via USB 2.0 high speed (480 Mbps)
Reclocking	Yes
SDI Compliance	SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601
SDI Video Rates	SDI video connections are switchable between HD and SD
SDI Video Sampling	4:2:2, 4:4:4
SDI Audio Sampling	Television standard sample rate of 48 kHz and 24 bit
SDI Color Precision	4:2:2, 4:4:4
SDI Color Space	YUV, RGB
SDI Auto Switching	Automatically selects between 3G/HD/SD
SDI Format Support	1080p/i at 60/59.94/50 1080p at 30/29.97/25/24/23.98 1080PsF30/29.97/25/24/23.98 720p60/59.94/50 525i59.94 NTSC 625i50 PAL
2K Format Support	2K DCI 25p/24p/23.98p 2K DCI 25PsF/24PsF/23.98PsF
Software Control	Mac OS X and Windows software upgrade via USB
Internal Software Upgrade	Via included updater application
Operating System	Mac OS X 10.11 El Capitan, macOS Sierra or later Windows 8.1 or Windows 10
Settings Control	Mini Switches or USB software
Power Supply	+12 V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption	8.4 W
Operational Voltage Range	12 VDC
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 113°F (-20 to 45°C)
Relative Humidity	0 to 90% non-condensing
Dimensions	4.5 x 3.6 x 0.9" (11.5 x 9.2 x 2.3 cm)
Weight	7.6 oz (215 g)
