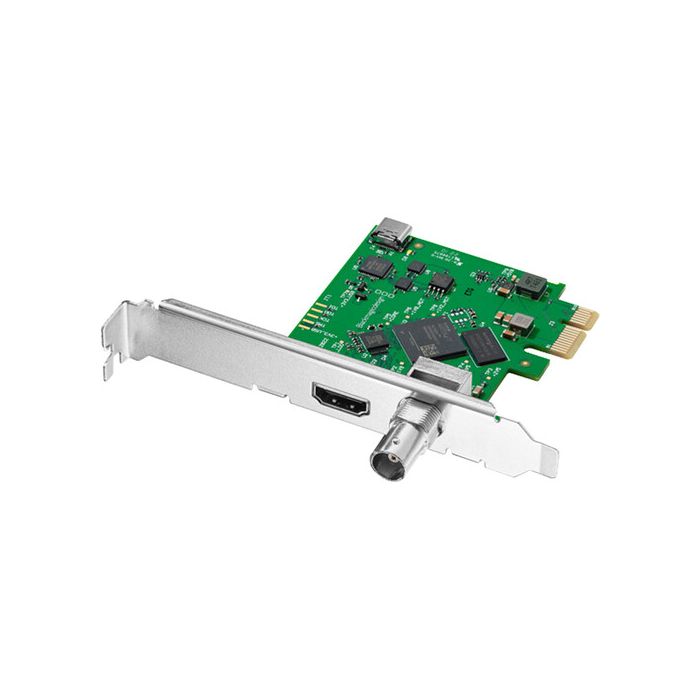

Blackmagic Design DeckLink Mini Recorder HD

Blackmagic Design DeckLink Mini Recorder HD

by Blackmagic Design

Dostupnost Beograd: Na stanju

SKU

BDLKMINIREC3G

Broadcast-Quality Recording
1-Lane PCIe Slot Card (for 1-16 Lanes)\
SDI and HDMI Inputs
Supports up to 2K DCI over SDI

17.396,00 RSD 14.496,67 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

Blackmagic Design DeckLink Mini Recorder HD
Low-Profile Slot Bracket

Detalji

Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.

The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

Note:

For use on a Mac, a Mac Pro is required with PCI Express slots.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

Wirecast, vMix, OBS, Cinergy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR
DV-NTSC DV-PAL, DVCPRO50, DVCPROHD,
DPX HDV, HEVC, XDCAM EX, XDCAM HD,
XDCAMHD422, DNxHR & DNxHD AppleProRes 4444,
Apple ProRes 422 HQ Apple ProRes 422 Apple ProRes 422LT
Apple ProRes 422 Proxy Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2,
Uncompressed 10-bit 4:4:4

Više informacija

System Connection	(Length Unspecified)
Video Inputs	1 x BNC (3G-SDI / HD-SDI / SD-SDI)
Video Inputs	1 x HDMI (HDMI 2.0)
Audio Inputs	None
Simultaneous Multi-Input Support	Not Specified by Manufacturer
Input Video Format	SDI (8/10/12-Bit 4:4:4 RGB)
	1080p at 23.98/24/25/29.97/30 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	SDI (8/10-Bit 4:2:2 YUV)
	DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
	DCI 2KPsF at 23.98/24/25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	1080i at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	HDMI (8-Bit 4:4:4 RGB, YUV)
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
	HDMI (12-Bit 4:4:4 YUV)
	1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
Embedded Audio	SDI: 16-Channel
Embedded Audio	HDMI: 8-Channel
Standards
Video Standard Compliance	SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Compatibility	Not Specified by Manufacturer
Hardware
OS Compatibility	macOS 11.1
	macOS 12.0 or Later
	Windows 10
	Windows 11
	Linux
	*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Power Consumption	Device: 3 W
Environmental
Operating Temperature	37 to 72°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Operating Humidity	0 to 90% (Non-Condensing)
Storage Humidity	0 to 90% (Non-Condensing)
General
Dimensions	3.62" / 91.95 mm
Weight	1.98 oz / 56 g
Packaging Info
Package Weight	0.29 lb
Box Dimensions (LxWxH)	5.6 x 5.3 x 1.2"
