Blackmagic Design DeckLink 8K Pro Mini

by Blackmagic Design

Rok isporuke: 20-30 dana

SKU

BDLKHCPRO8K12GMINI

DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card.

92.138,00 RSD 76.781,67 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

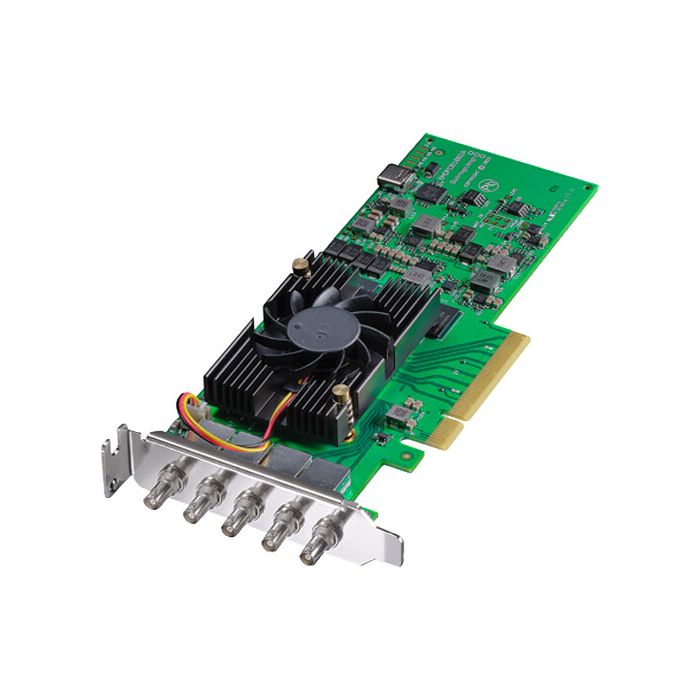

Blackmagic Design DeckLink 8K Pro Mini Capture Card

Detalji

DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card. Featuring 4 independent 12G‑SDI Micro BNC connections, DeckLink 8K Pro Mini can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution and high dynamic range workflows!

Više informacija

Inputs / Outputs
System Connection	PCIe 3.0 x8
Inputs/Outputs	4 x Micro-BNC (12G-SDI) Female (Switchable)
Audio Inputs	No
Other I/O	1 x BNC Reference Input
Simultaneous Multi-Input Support	Yes
Format Support
Input Video Format	BNC (8/10/12-Bit 4:4:4/4:2:2 RGB)
	DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	DCI 2KPsF at 23.98/24/25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
Input Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Output Video Format	SDI (8/10/12-Bit 4:4:4/4:2:2 RGB)
	DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	DCI 2KPsF at 23.98/24/25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps
	1080PsF at 23.98/24/25/29.97/30 fps
	720p at 50/59.94/60 fps
	576i / 625 lines at 50 fps
	480i / 525 lines at 59.94 fps
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio	SDI Input: 64-Channel
	SDI Output: 64-Channel
Standards
Video Standard Compliance	SMPTE 259M/274M/292M/296M/372M/424M/ST-2036-1/ST-2048/ST-2081-10/ST-2081-11/ST-2082-1/ST-2082-10/ST-2108-1
HDR Compatibility	Hybrid Log Gamma
Hardware
OS Compatibility	macOS 12 or Later
	macOS 13
	Windows 11 or Later (64-Bit Only)
	Windows 10 or Later (64-Bit Only)
	Linux
Power Consumption	Device: 18 W
Environmental
Operating Temperature	41 to 122°F / 5 to 50°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90% ()
Storage Humidity	0 to 90% (Non-Condensing)
General
Dimensions	7.1" / 180.3 mm
Weight	4.25 oz / 120 g
