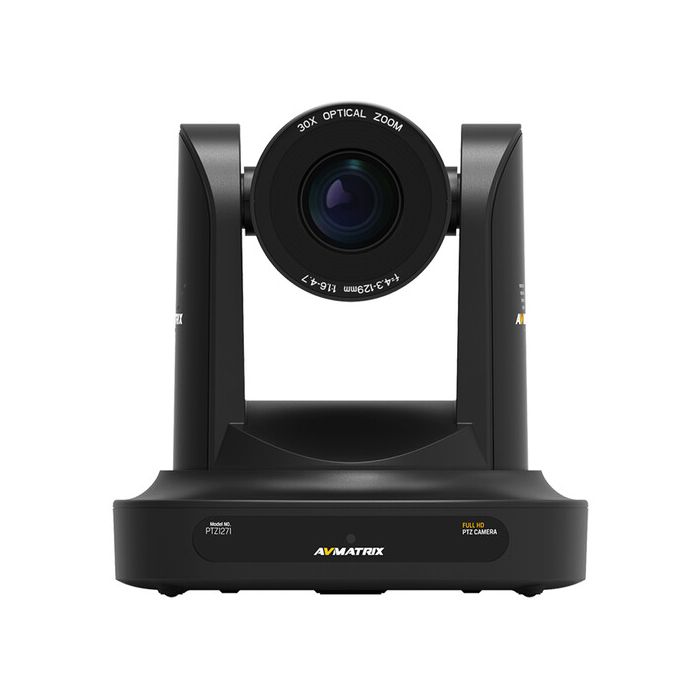

AVMATRIX PTZ1271-30X-POE 30X SDI HDMI PTZ Camera

by Avmatrix

Dostupnost Beograd: Isporuka 20-30 dana

SKU

PTZ1271-30X-POE

1/2.8" HD CMOS Sensor
30x Optical Zoom, 10x Digital Zoom
HDMI & 3G-SDI Video Output, PoE Power

161.248,00 RSD 134.373,33 RSD

Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Naknada iznosi 5% preko navedene cene i biće dodata na vašu porudžbinu u korpi prilikom odabira metode plaćanja. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
Međunarodna kupovina

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sardžaj pakovanja

AVMATRIX PTZ1271-30X-POE Full HD PTZ Camera
Power Supply
RS232 Control Cable
Remote Control

Detalji

Add a powerful PTZ camera setup with HD video capture to your production with this PTZ1271-30X-POE Full HD PTZ Camera from AVMatrix. The camera offers precision control and multiple output ports offering up to 1080p video, and it also supports control and streaming over LAN. Designed for broadcast, security, and teleconferencing needs, the PTZ1271-30X-POE also supports VISCA, PELCO-D, and PELCO-P control protocols.

The integrated f/1.6 to 4.7 lens offers 30x optical and 10x digital zoom functions. This camera supports video output via HDMI and 3G-SDI and has a LAN port for streaming via RTMP, RTSP, or ONVIF. Power this PTZ camera using the the included 12 VDC adapter or via PoE. Quick pan and tilt speeds and picture controls like brightness, color, saturation, contrast, sharpness, and 2D/3D Noise Reduction provide precision control of your images.

Features

HDMI, 3G-SDI, and LAN video outputs

Supports up to 1080p video via HDMI and 3G-SDI

Built-in f/1.6 to 4.7 aperture lens with 30x optical and 10x digital zoom

Select up to 255 presets; up to 10 via included remote controller

A 1/4"-20 thread on the camera bottom can be used for mounting on a tripod, and an optional wall/ceiling mounting bracket is available

Više informacija

AVMATRIX PTZ1271 Specs

Imaging

Sensor Type	1/2.8"-Type CMOS Sensor
Sensor Resolution	Effective: 2.07 Megapixel
Built-In ND Filter	None
Focus Control	Autofocus

Exposure Control

Signal-to-Noise Ratio	55 dB
Flip / Mirror Support	Image Flip
White Balance	3000 to 7000K

Lens

Focal Length	4.3 to 129mm
Optical Zoom Ratio	30x
Max Digital Zoom	10x
Field of View	2.34 to 65.1°
Maximum Aperture	f/1.6 to 4.7

Video Capture

External Recording Modes	SDI/BNC / HDMI 1920 x 1080p
Broadcast Output	NTSC
IP Streaming	RTMP, RTSP, SRT 1920 x 1080

Control

Presets	255
Move Speed	Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec
Movement Range	Pan: 340° (-170 to 170°) Tilt: 120° (-30 to 90°)
Supported Control Protocols	Pelco-D Pelco-P VISCA

Interface

Video I/O	1 x BNC (3G-SDI) Output 1 x HDMI Output
Audio I/O	1 x 1/8" / 3.5 mm TRS Stereo Line Input
Other I/O	1 x RJ45 (LAN) 1 x Mini-DIN 8-Pin (RS-232) Input 1 x Mini-DIN 8-Pin (RS-232) Output 1 x Block (RS-485) Input

Power

PoE Support	PoE 802.3af
Power I/O	1 x Barrel Input
Power Consumption	Device: 12 VDC at 1 A (12 W)

Environmental

Operating Temperature	14 to 122°F / -10 to 50°C
Storage Temperature	14 to 140°F / -10 to 60°C
Operating Humidity	20 to 80% (Non-Condensing)
Storage Humidity	20 to 95% (Non-Condensing)
