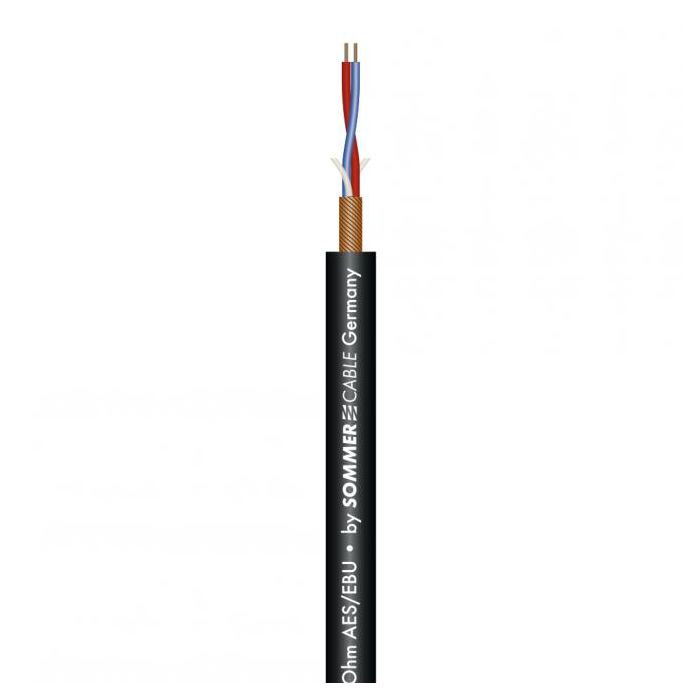

SOMMER CABLE Microphone Cable SC-MICRO-STAGE 2x0,14mm2, black
by Sommer CableMicrophone Cable SC-MICRO-STAGE; 2 x 0,14 mm²; PVC Ø 5,80 mm; black.
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
The shrinking violet
among the microphone cables is the new AES/EBU-capable SC-MICRO-STAGE.
Though it may look somewhat inconspicuous at first sight, it splendidly meets the most essential requirements of contemporary live and studio technology.
It has a cold-flexible, soft PVC jacket, a low capacitance and is very easy to handle.
The compact cable diameter of 5,80 mm is ideal for using stereo jack connectors and XLR connectors with a small cable passage like they are still very popular e.g. overseas or on the US market.
When used as a patch or MIDI cable, it will occupy only very little space in your patchbay or in the home studio.
Due to its tight, concentric litz stranding and the foamed Skin PE wire insulation, the SC-MICRO-STAGE can easily transmit analogue and digital signals 110 Ω over distances greater than 100 metres.
Advantages:
- High transmission quality due to the usw of fine stranding
- Very rugged owing to the thick, soft PVC jacket
- Good shielding due to dence helical copper mesh screen
- High flexibility makes it easy to reel
Application:
- Stage application – Studio
| Name | SC-MICRO-STAGE |
|---|---|
| Properties | Digital 110 Ω AES / EBU |
| Properties | OFC oxygen free copper |
| Properties | Analog |
| Application area | Mobile outdoor / indoor |
| Application area | Stage / live |
| Application area | Installation |
| Application | Microphone Cable |
| Colour | black |
| Colour detailed | black |
| Signal transmission | symmetrical |
| Construction | (2LI2Y0,14mm²)DY |
| Jacket material | PVC |
| Jacket Ø [mm] | 5,80 |
| Number of Channels (audio) | 1 |
| Inner conductor (audio) | 2 |
| Inner conductor (audio) [mm²] | 0,14 |
| Inner conductor Ø (audio) [mm] | 0,42 |
| AWG (audio) | 26 |
| Shielding | Copper spiral shielding with 0.10 mm indiv. strands |
| Copper strands (audio) | 18 |
| Copper strand Ø (audio) [mm] | 0,10 |
| Conductor insulation material | Foam / Skin-PE |
| Conductor insulation Ø [mm] | 1,20 |
| Weight per 1 m [g] | 50 |
| UV-resistant | yes |
| Fire load per m [kWh] | 0,22 |
| Style variant | round |
| Shielding factor [%] | 95 |
| Packing | 500 m spool |
| Packing | 100 m spool |
| Temperature min. [°C] | -25 |
| Temperature max. [°C] | 70 |
| Width [mm] | 5,8 |
| Height [mm] | 5,8 |
| Capac. cond./cond. per 1 m (audio) [pF] | 48 |
| Capacity wire/wire at 1 ft. (audio) [pF] | 14,6304 |
| Capac. cond./shield. per 1 m (audio) [pF] | 120 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] | 36,576 |
| Impedance [Ω] | 95 |
| Surge impedance (audio) [Ω] | 110 |
| Insulation resist. per 1 km [GΩ] | 1 |
| Insulation resist. per 1000 feet [GΩ] | 0,3048 |
| Insulation resist. per 1 km (audio) [GΩ] | 1 |
| Insulation resist. per 1000 feet (audio) [GΩ] | 0,3048 |
| Conductor resistance per 1 km [Ω] | 130 |
| Conductor resistance per 1000 ft. [Ω] | 39,624 |
| Shield. resistance per 1 km [Ω] | 30 |
| Shield. resistance per 1000 ft. [Ω] | 9,144 |
| EAN | 4049371176170 |
