Blackmagic Design GPI and Tally Interface
by Blackmagic Design
Dostupnost Beograd:
Isporuka 20-30 dana
SKU
SWTALGPI8

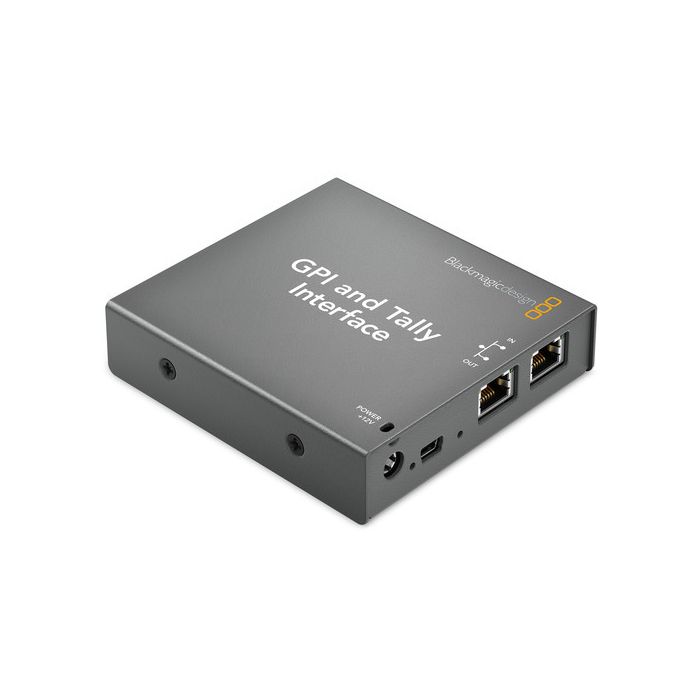

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals.
65.455,00 RSD
54.545,83 RSD
- Plaćanje na rate Možete plaćati na rate koristeći Visa, Visa Premium, Maestro, MasterCard, Diners kreditne kartice. Za više detalja, kliknite na link sa informacijama o metodama plaćanja.
- Brza dostava Za sve porudžbine u Srbiji primljene do 14:00 časova radnog dana, isporuka će biti izvršena narednog radnog dana.
- Međunarodna kupovina
Sardžaj pakovanja
- Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 12 V Power Supply
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
Connections | |
|---|---|
| Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
| Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
| Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
